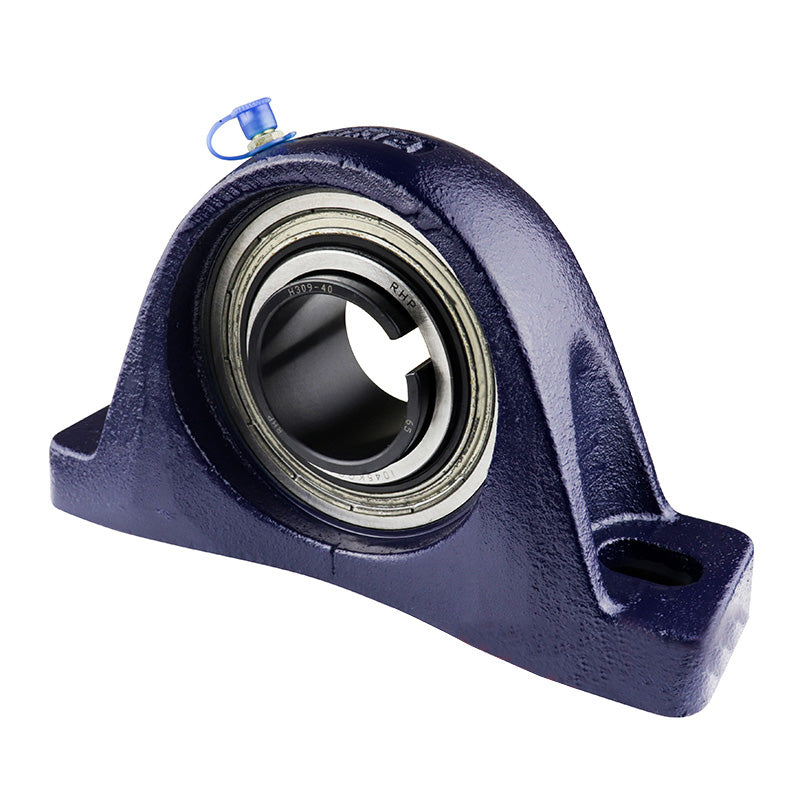

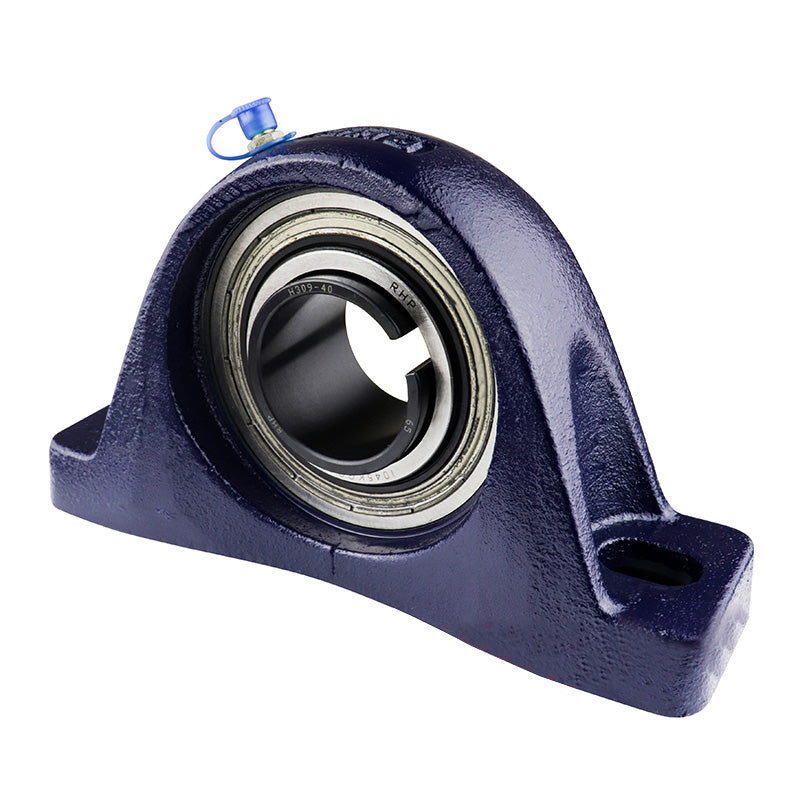

• RHP NP1025-20K Two Bolt Cast Iron Pillow Block and 20mm Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1025-20K-RHP

RHP NP1025-20K Two Bolt Cast Iron Pillow Block and 20mm Bore Taper Insert with Sleeve and Lock Nut

RHP NP1025-20K Two Bolt Cast Iron Pillow Block and 20mm Bore Taper Insert with Sleeve and Lock Nut
$70.91 ex VAT
$70.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.50
20+ $44.83
30+ $44.30
40+ $43.76
50+ $43.23
75+ $42.70
100+ $40.03
200+ $39.49
250+ $38.96
500+ $38.43
1000+ $37.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
NP
Bolt Hole Centres:
96.8-112.7mm
Technical
Bore 20mm
L 139mm
H 36.5mm
H1 16mm
H2 71mm
J max 112.7mm
J min 96.8mm
G 10mm
A 36.5mm
A1 24.5mm
B5 29mm
d4 38mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1025K+insonly">1025K Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
