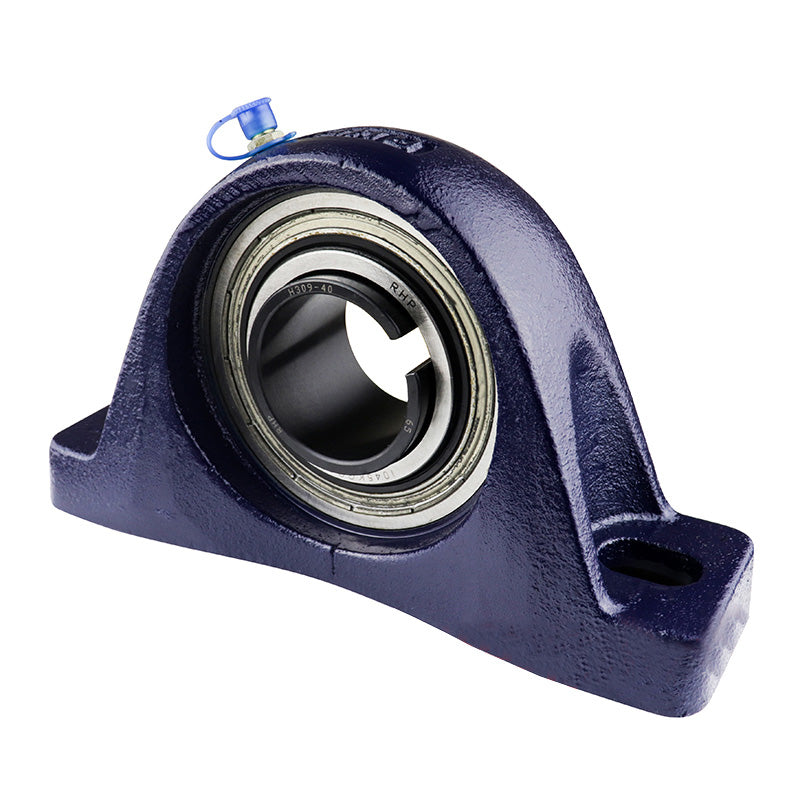

• RHP NP1025K Two Bolt Cast Iron Pillow Block and 3/4 Bore and Taper Bore Insert (No Sleeve)
1 1

SKU: NP1025K-RHP

RHP NP1025K Two Bolt Cast Iron Pillow Block and 3/4 Bore and Taper Bore Insert (No Sleeve)

RHP NP1025K Two Bolt Cast Iron Pillow Block and 3/4 Bore and Taper Bore Insert (No Sleeve)
$49.93 ex VAT
$49.93 ex VAT
Sale Sold out

In stock

Price Break
10+ $33.45
20+ $31.57
30+ $31.19
40+ $30.82
50+ $30.44
75+ $30.06
100+ $28.18
200+ $27.81
250+ $27.43
500+ $27.06
1000+ $26.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
NP
Bolt Hole Centres:
3.811-4.437 inch
Technical
L 5.472 inch
H 1.437 inch
H1 0.63 inch
H2 2.795 inch
J max 4.437 inch
J min 3.811 inch
G 0.375 inch
A 1.437 inch
A1 0.965
B5 1.142
d4 1.496 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1025K+insonly">1025K Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
