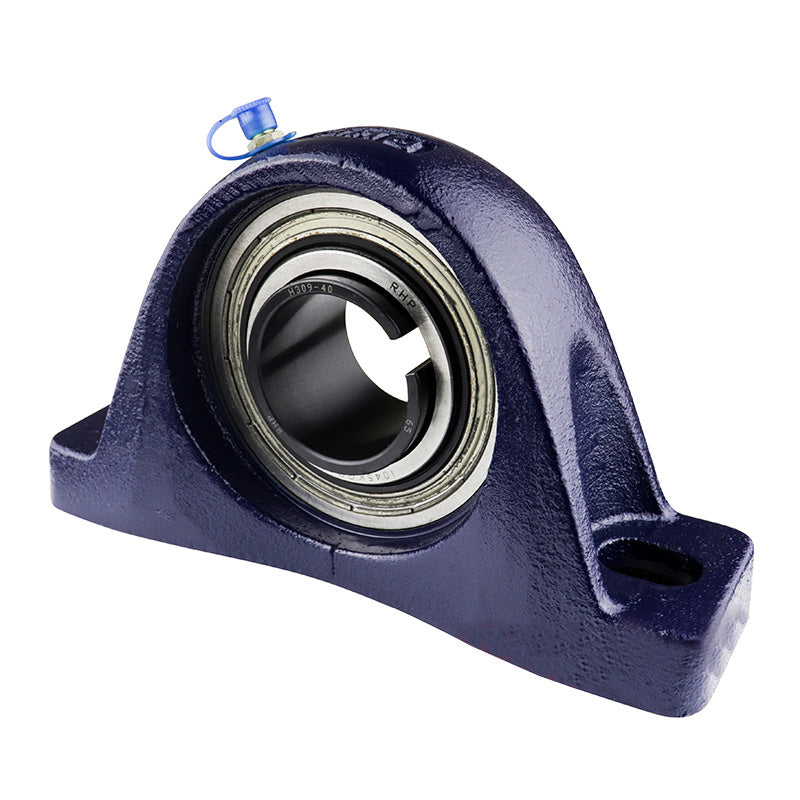

• RHP NP1030-25K Two Bolt Cast Iron Pillow Block and 25mm Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1030-25K-RHP

RHP NP1030-25K Two Bolt Cast Iron Pillow Block and 25mm Bore Taper Insert with Sleeve and Lock Nut

RHP NP1030-25K Two Bolt Cast Iron Pillow Block and 25mm Bore Taper Insert with Sleeve and Lock Nut
$85.48 ex VAT
$85.48 ex VAT
Sale Sold out

In stock

Price Break
10+ $57.26
20+ $54.04
30+ $53.40
40+ $52.75
50+ $52.11
75+ $51.47
100+ $48.25
200+ $47.61
250+ $46.96
500+ $46.32
1000+ $45.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
NP
Bolt Hole Centres:
108.5-129.5mm
Technical
Bore 25mm
L 160.5mm
H 42.9mm
H1 17.7mm
H2 82.7mm
J max 129.5mm
J min 108.5mm
G 12mm
A 41.5mm
A1 27.5mm
B5 31mm
d4 45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1030K+insonly">1030K Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
