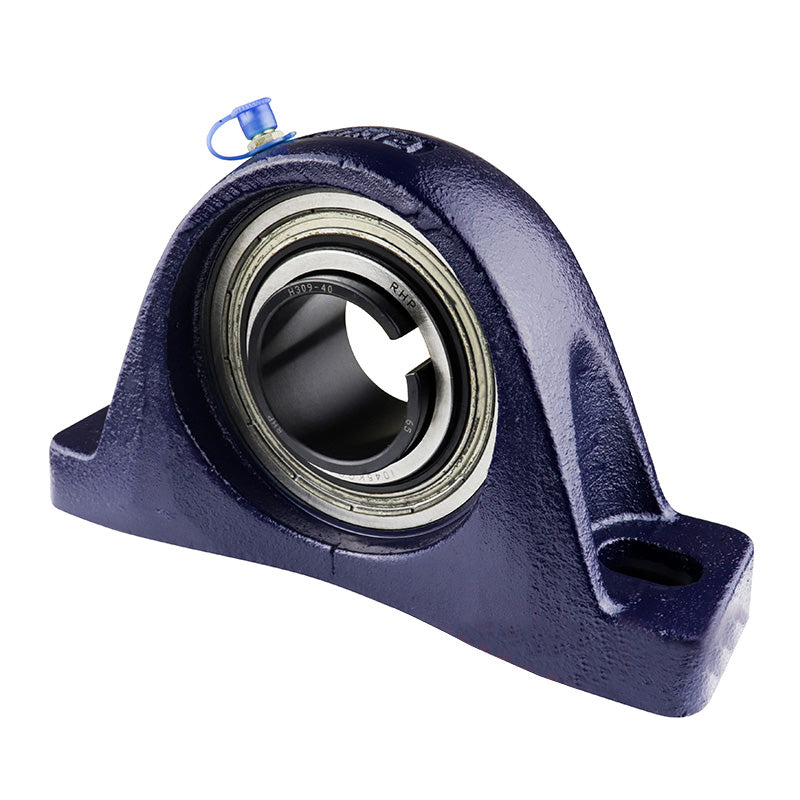

• RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1035-30K-RHP

RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut

RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut
$97.02 ex VAT
$97.02 ex VAT
Sale Sold out

In stock

Price Break
10+ $64.99
20+ $61.34
30+ $60.61
40+ $59.88
50+ $59.15
75+ $58.42
100+ $54.77
200+ $54.03
250+ $53.30
500+ $52.57
1000+ $51.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
NP
Bolt Hole Centres:
121.5-136.5mm
Technical
Bore 30mm
L 166mm
H 47.6mm
H1 17.5mm
H2 93mm
J max 136.5mm
J min 121.5mm
G 12mm
A 44.5mm
A1 30.5mm
B5 35mm
d4 52mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
