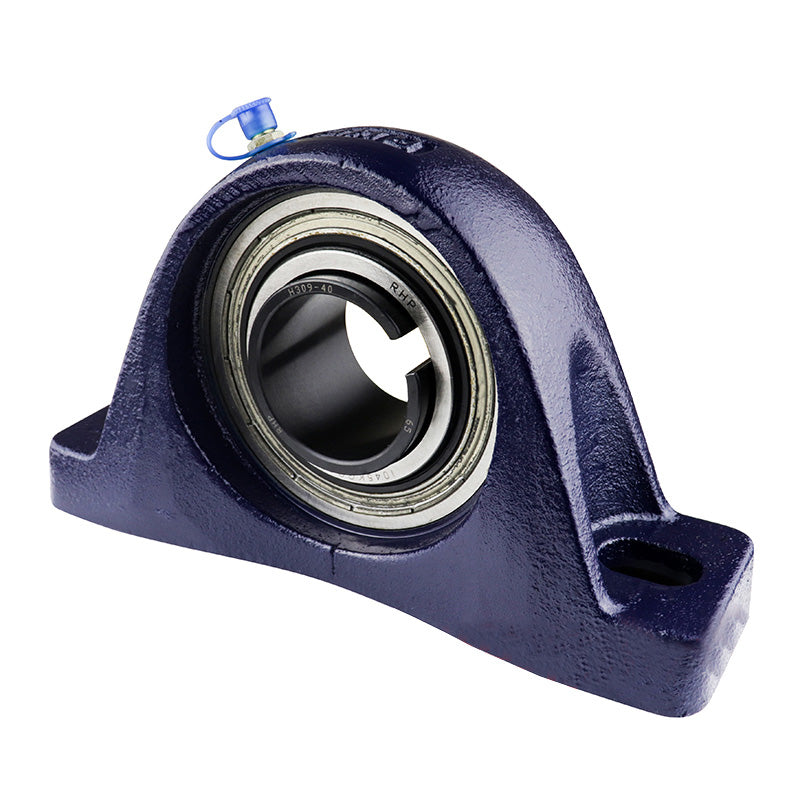

• RHP NP1035K Two Bolt Cast Iron Pillow Block and 1-3/16 Bore and Taper Bore Insert (No Sleeve)
1 1

SKU: NP1035K-RHP

RHP NP1035K Two Bolt Cast Iron Pillow Block and 1-3/16 Bore and Taper Bore Insert (No Sleeve)

RHP NP1035K Two Bolt Cast Iron Pillow Block and 1-3/16 Bore and Taper Bore Insert (No Sleeve)
$75.10 ex VAT
$75.10 ex VAT
Sale Sold out

In stock

Price Break
10+ $50.31
20+ $47.48
30+ $46.91
40+ $46.35
50+ $45.78
75+ $45.22
100+ $42.39
200+ $41.83
250+ $41.26
500+ $40.70
1000+ $39.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
NP
Bolt Hole Centres:
4.783-5.374 inch
Technical
L 6.535 inch
H 1.874 inch
H1 0.689 inch
H2 3.661 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201
B5 1.378
d4 2.047 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
