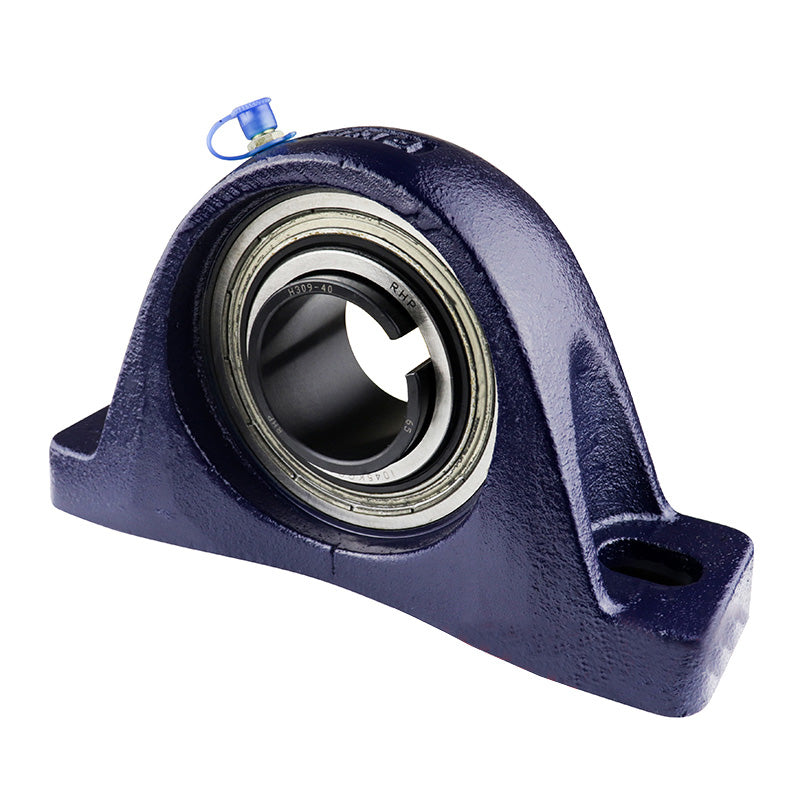

• RHP NP1040K Two Bolt Cast Iron Pillow Block and 1-3/8 Bore and Taper Bore Insert (No Sleeve)
1 1

SKU: NP1040K-RHP

RHP NP1040K Two Bolt Cast Iron Pillow Block and 1-3/8 Bore and Taper Bore Insert (No Sleeve)

RHP NP1040K Two Bolt Cast Iron Pillow Block and 1-3/8 Bore and Taper Bore Insert (No Sleeve)
$89.69 ex VAT
$89.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $60.08
20+ $56.70
30+ $56.03
40+ $55.35
50+ $54.68
75+ $54.00
100+ $50.63
200+ $49.95
250+ $49.28
500+ $48.60
1000+ $47.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Style:
NP
Bolt Hole Centres:
5-5.827 inch
Technical
L 7.106 inch
H 1.937 inch
H1 0.728 inch
H2 3.878 inch
J max 5.827 inch
J min 5 inch
G 0.5 inch
A 2.008 inch
A1 1.358
B5 1.417
d4 2.283 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.1 kg
Insert <a href="advanced_search_result.php?keywords=1040K+insonly">1040K Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
