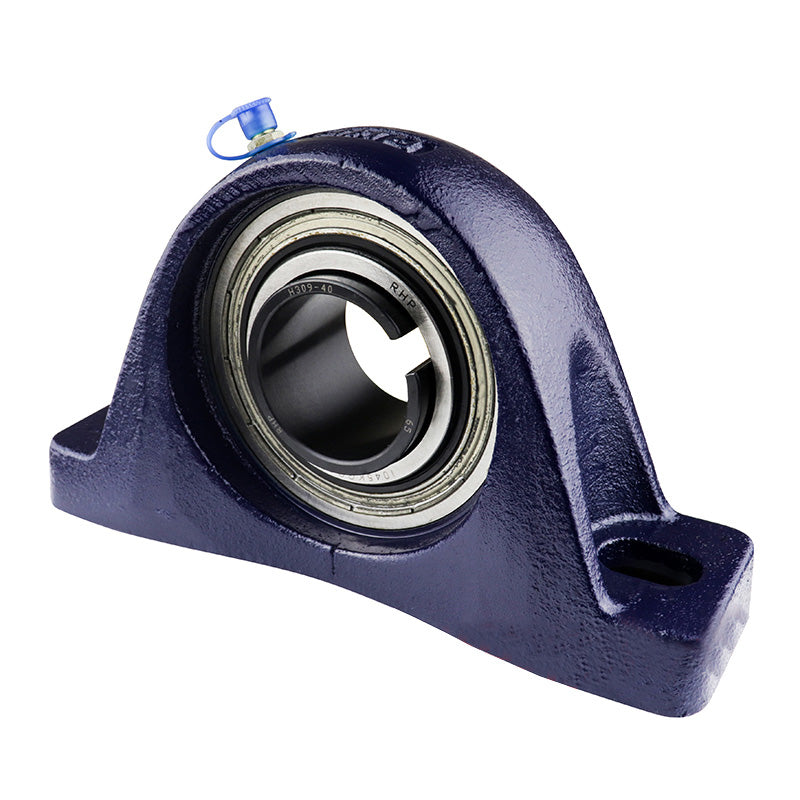

• RHP NP1045-1-1/2K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1045-1.1/2K-RHP

RHP NP1045-1-1/2K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Taper Insert with Sleeve and Lock Nut

RHP NP1045-1-1/2K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Taper Insert with Sleeve and Lock Nut
$135.53 ex VAT
$135.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $90.78
20+ $85.68
30+ $84.66
40+ $83.64
50+ $82.62
75+ $81.60
100+ $76.50
200+ $75.48
250+ $74.46
500+ $73.44
1000+ $71.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
NP
Bolt Hole Centres:
5.531-6.083 inch
Technical
Bore 1-1/2 inch
L 7.5 inch
H 2.126 inch
H1 0.787 inch
H2 4.252 inch
J max 6.083 inch
J min 5.531 inch
G 0.5 inch
A 2.126 inch
A1 1.378
B5 1.535
d4 2.559 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
