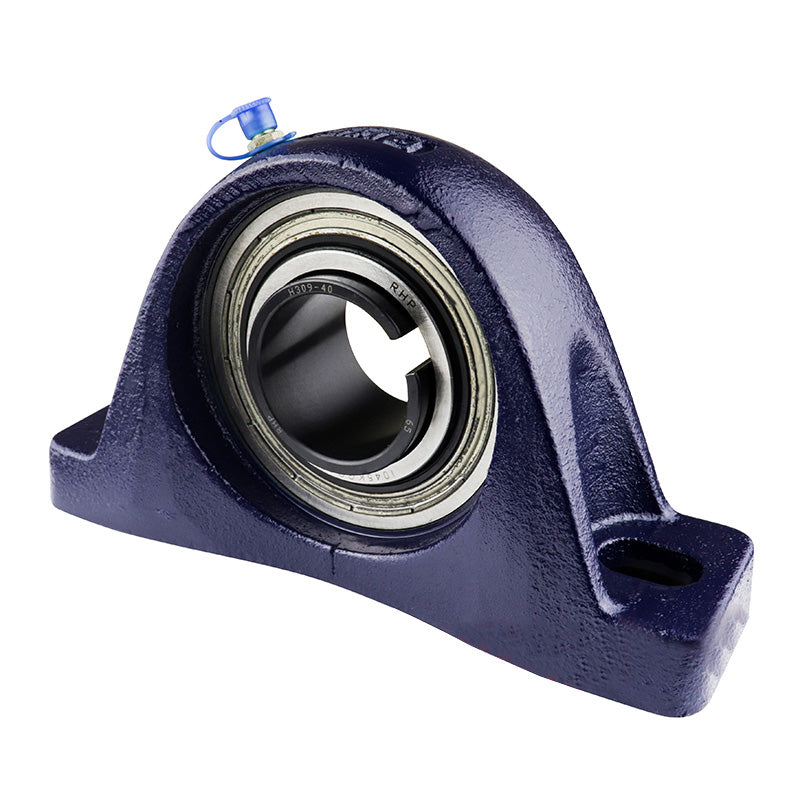

• RHP NP1045-40K Two Bolt Cast Iron Pillow Block and 40mm Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1045-40K-RHP

RHP NP1045-40K Two Bolt Cast Iron Pillow Block and 40mm Bore Taper Insert with Sleeve and Lock Nut

RHP NP1045-40K Two Bolt Cast Iron Pillow Block and 40mm Bore Taper Insert with Sleeve and Lock Nut
$127.74 ex VAT
$127.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $85.56
20+ $80.76
30+ $79.79
40+ $78.83
50+ $77.87
75+ $76.91
100+ $72.10
200+ $71.14
250+ $70.18
500+ $69.22
1000+ $67.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
NP
Bolt Hole Centres:
140.5-154.5mm
Technical
Bore 40mm
L 190.5mm
H 54mm
H1 20mm
H2 108mm
J max 154.5mm
J min 140.5mm
G 12mm
A 54mm
A1 35mm
B5 39mm
d4 65mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
