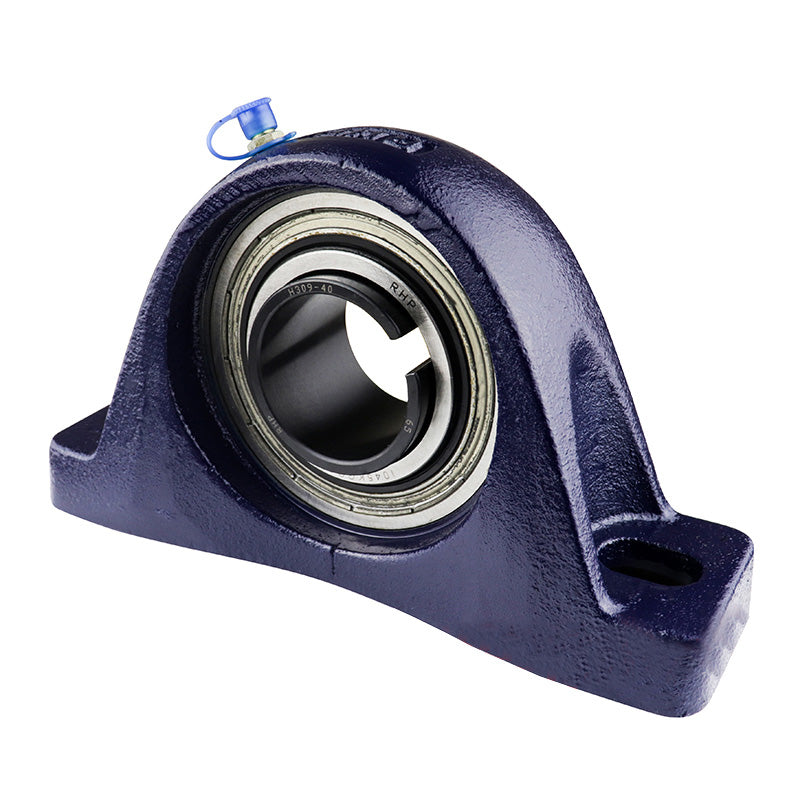

• RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
1 1

SKU: NP1045K-RHP

RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)

RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
$99.32 ex VAT
$99.32 ex VAT
Sale Sold out

In stock

Price Break
10+ $66.53
20+ $62.79
30+ $62.04
40+ $61.30
50+ $60.55
75+ $59.80
100+ $56.06
200+ $55.32
250+ $54.57
500+ $53.82
1000+ $52.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
NP
Bolt Hole Centres:
5.531-6.083 inch
Technical
L 7.5 inch
H 2.126 inch
H1 0.787 inch
H2 4.252 inch
J max 6.083 inch
J min 5.531 inch
G 0.5 inch
A 2.126 inch
A1 1.378
B5 1.535
d4 2.559 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
