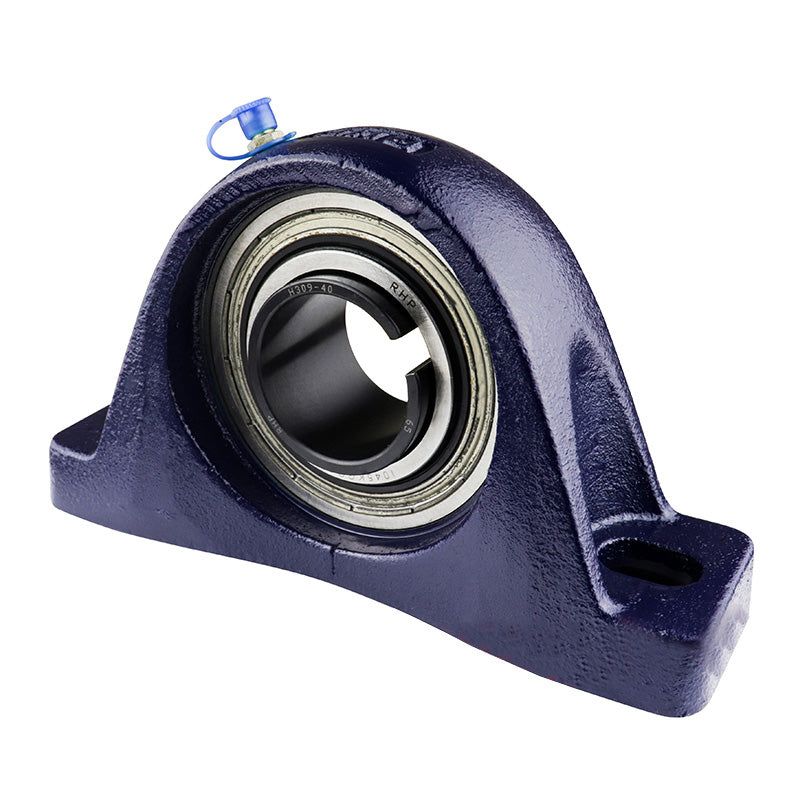

• RHP NP1050-45K Two Bolt Cast Iron Pillow Block and 45mm Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1050-45K-RHP

RHP NP1050-45K Two Bolt Cast Iron Pillow Block and 45mm Bore Taper Insert with Sleeve and Lock Nut

RHP NP1050-45K Two Bolt Cast Iron Pillow Block and 45mm Bore Taper Insert with Sleeve and Lock Nut
$147.95 ex VAT
$147.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $99.10
20+ $93.53
30+ $92.42
40+ $91.30
50+ $90.19
75+ $89.08
100+ $83.51
200+ $82.40
250+ $81.28
500+ $80.17
1000+ $77.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
NP
Bolt Hole Centres:
154-163mm
Technical
Bore 45mm
L 206mm
H 57.2mm
H1 21mm
H2 115.2mm
J max 163mm
J min 154mm
G 16mm
A 55mm
A1 36mm
B5 42mm
d4 70mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1050K+insonly">1050K Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
