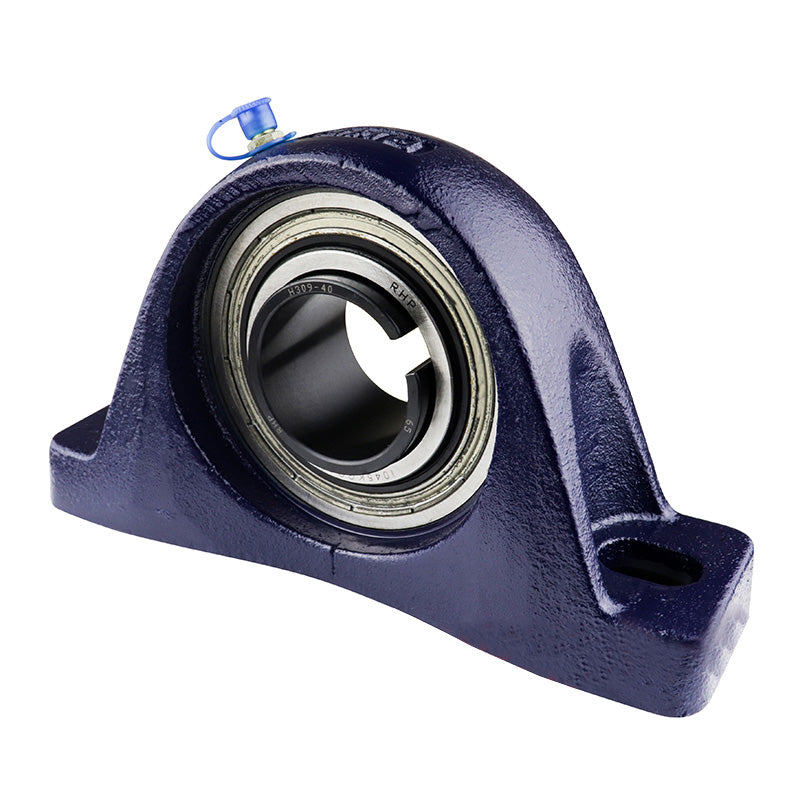

• RHP NP1055-50K Two Bolt Cast Iron Pillow Block and 50mm Bore Taper Insert with Sleeve and Lock Nut
1 1

SKU: NP1055-50K-RHP

RHP NP1055-50K Two Bolt Cast Iron Pillow Block and 50mm Bore Taper Insert with Sleeve and Lock Nut

RHP NP1055-50K Two Bolt Cast Iron Pillow Block and 50mm Bore Taper Insert with Sleeve and Lock Nut
$198.89 ex VAT
$198.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $133.22
20+ $125.74
30+ $124.24
40+ $122.74
50+ $121.25
75+ $119.75
100+ $112.27
200+ $110.77
250+ $109.27
500+ $107.77
1000+ $104.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
NP
Bolt Hole Centres:
162.5-178.5mm
Technical
Bore 50mm
L 219.5mm
H 63.5mm
H1 24.8mm
H2 129.5mm
J max 178.5mm
J min 162.5mm
G 16mm
A 60mm
A1 39.5mm
B5 45mm
d4 75mm
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
