SKU: NP16EC-RHP
RHP NP16EC Two Bolt Cast Iron Pillow Block and 16mm Bore Eccentric Collar Flat Back Insert - Allow 2-3 Days
RHP NP16EC Two Bolt Cast Iron Pillow Block and 16mm Bore Eccentric Collar Flat Back Insert - Allow 2-3 Days
Regular price
$2.22
ex VAT
Regular price
Sale price
$2.22
ex VAT
In stock
Price Break
10+
$1.17
20+
$1.00
30+
$0.92
40+
$0.84
50+
$0.67
75+
$0.58
100+
$0.50
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP-EC Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 16mm
- Style:
- NP
- Bolt Hole Centres:
- 85.5-100.5mm

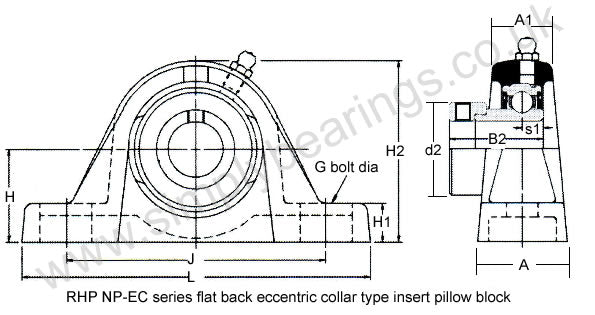

Technical
Technical
| Bore | 16mm |
|---|---|
| L | 126.5mm |
| H | 30.2mm |
| H1 | 14.2mm |
| H2 | 57.2mm |
| J max | 100.5mm |
| J min | 85.5mm |
| G | 10mm |
| A | 30.5mm |
| A1 | 20.5mm |
| B2 | 28.54mm |
| s1 | 6.55mm |
| d2 | 28.58mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1217-16ECG+insonly">1217-16ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
