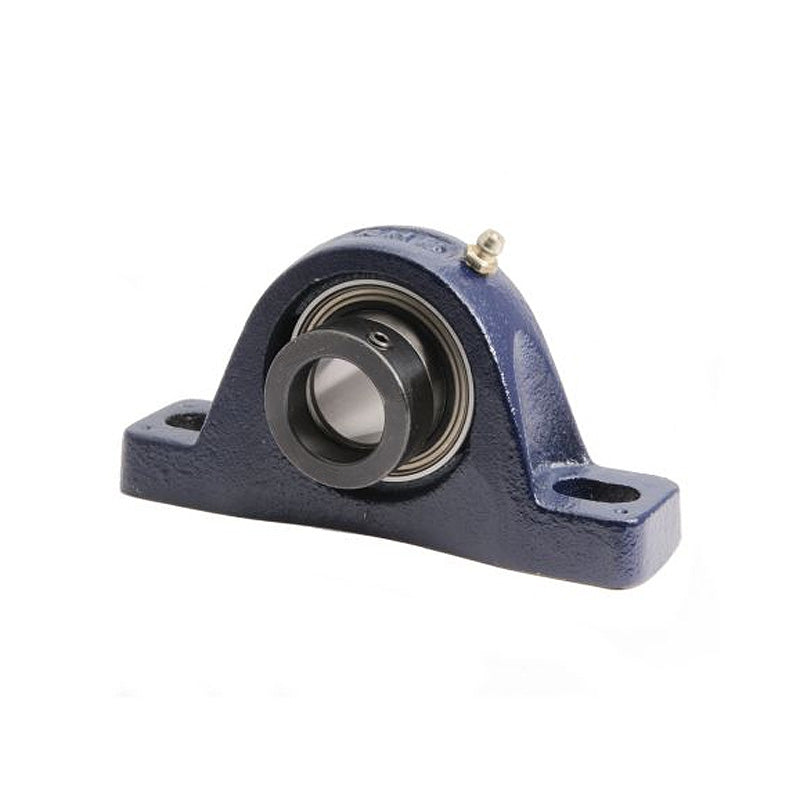

• RHP NP25EC Two Bolt Cast Iron Pillow Block and 25mm Bore Eccentric Collar Flat Back Insert
1 1

SKU: NP25EC-RHP

RHP NP25EC Two Bolt Cast Iron Pillow Block and 25mm Bore Eccentric Collar Flat Back Insert

RHP NP25EC Two Bolt Cast Iron Pillow Block and 25mm Bore Eccentric Collar Flat Back Insert
$51.42 ex VAT
$51.42 ex VAT
Sale Sold out

Equivalent to: SY25FM-SKF

In stock

Price Break
10+ $34.44
20+ $32.51
30+ $32.12
40+ $31.73
50+ $31.35
75+ $30.96
100+ $29.02
200+ $28.64
250+ $28.25
500+ $27.86
1000+ $27.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
NP
Bolt Hole Centres:
96.8-112.7mm
Technical
Bore 25mm
L 139mm
H 36.5mm
H1 16mm
H2 71mm
J max 112.7mm
J min 96.8mm
G 10mm
A 36.5mm
A1 24.5mm
B2 30.92mm
s1 7.56mm
d2 38.1mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
