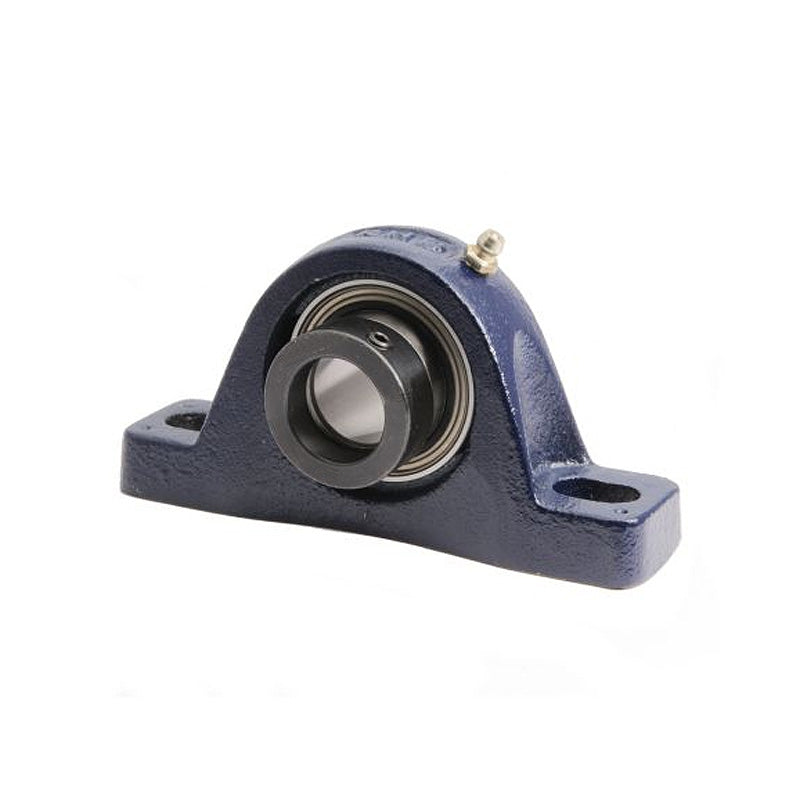

• RHP NP2DEC Two Bolt Cast Iron Pillow Block and 2 Bore Eccentric Collar Full Width Insert
1 1

SKU: NP2DEC-RHP

RHP NP2DEC Two Bolt Cast Iron Pillow Block and 2 Bore Eccentric Collar Full Width Insert

RHP NP2DEC Two Bolt Cast Iron Pillow Block and 2 Bore Eccentric Collar Full Width Insert
$178.71 ex VAT
$178.71 ex VAT
Sale Sold out

In stock

Price Break
10+ $119.70
20+ $112.98
30+ $111.63
40+ $110.29
50+ $108.94
75+ $107.60
100+ $100.87
200+ $99.53
250+ $98.18
500+ $96.84
1000+ $94.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
NP
Bolt Hole Centres:
6.398-7.028 inch
Technical
Bore 2 inch
L 8.641 inch
H 2.5 inch
H1 0.976 inch
H2 5.098 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
