• RHP NP3-1/4 Two Bolt Cast Iron Pillow Block and 3-1/4 Bore Grub Screw Full Width Insert
1 1

SKU: NP3.1/4-RHP

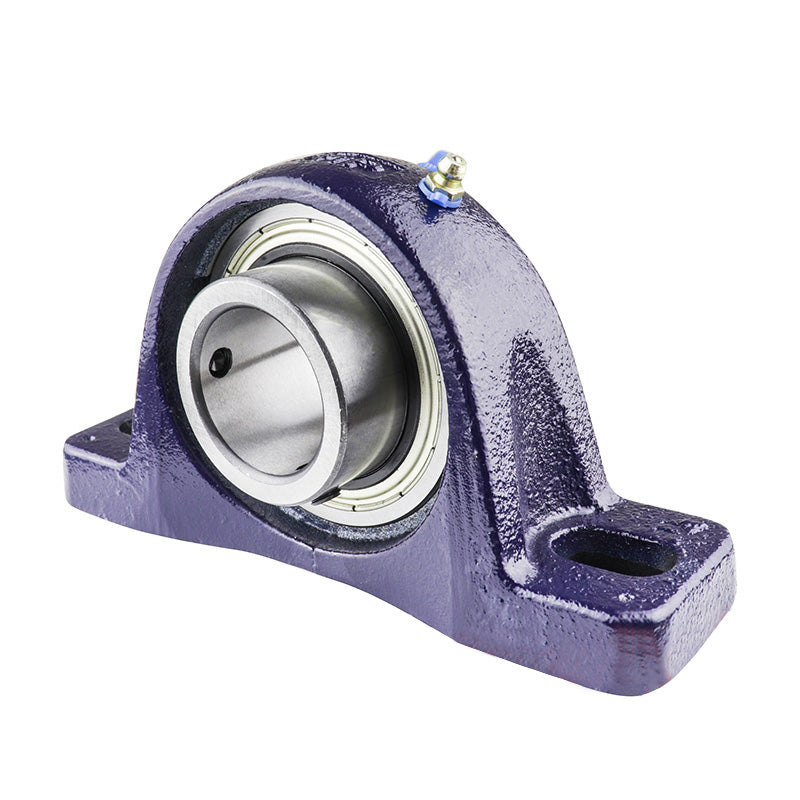

RHP NP3-1/4 Two Bolt Cast Iron Pillow Block and 3-1/4 Bore Grub Screw Full Width Insert

RHP NP3-1/4 Two Bolt Cast Iron Pillow Block and 3-1/4 Bore Grub Screw Full Width Insert
$545.91 ex VAT
$545.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $365.66
20+ $345.12
30+ $341.01
40+ $336.90
50+ $332.79
75+ $328.69
100+ $308.14
200+ $304.03
250+ $299.93
500+ $295.82
1000+ $287.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
82.55mm = 3.25 (3-1/4) inch
Style:
NP
Bolt Hole Centres:
9.134-10.315 inch
Technical
Bore 3-1/4 inch
L 12.205 inch
H 3.748 inch
H1 1.26 inch
H2 7.362 inch
J max 10.315 inch
J min 9.134 inch
G 0.875 inch
A 3.268 inch
A1 2.205 inch
B 3.375 inch
s 1.346 inch
d1 4.174 inch
Dynamic load Cr 83000 N
Static load Cor 64000 N
Rec max speed 2000 rpm
Weight 11.8 kg
Insert <a href="advanced_search_result.php?keywords=1085-3-1/4G+insonly">1085-3-1/4G Click Here</a>
Casting group 14
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
