SKU: NP3.3/8-RHP

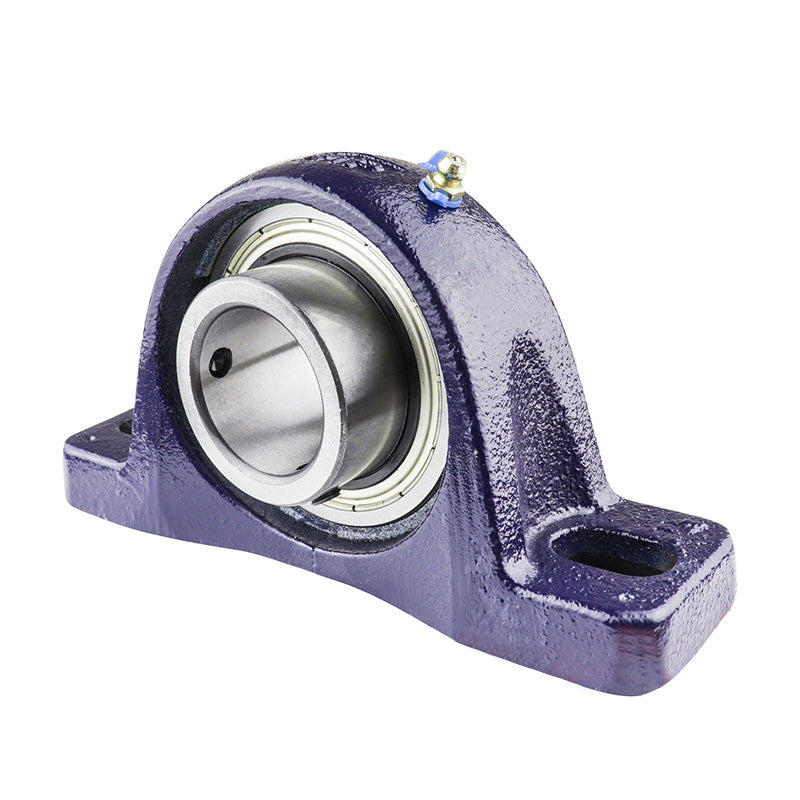

RHP NP3-3/8 Two Bolt Cast Iron Pillow Block and 3-3/8 Bore Grub Screw Full Width Insert

RHP NP3-3/8 Two Bolt Cast Iron Pillow Block and 3-3/8 Bore Grub Screw Full Width Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-3/8 inch
L 12.205 inch
H 3.748 inch
H1 1.26 inch
H2 7.362 inch
J max 10.315 inch
J min 9.134 inch
G 0.875 inch
A 3.268 inch
A1 2.205 inch
B 3.375 inch
s 1.346 inch
d1 4.174 inch
Dynamic load Cr 83000 N
Static load Cor 64000 N
Rec max speed 2000 rpm
Weight 11.8 kg
Insert <a href="advanced_search_result.php?keywords=1085-3-3/8G+insonly">1085-3-3/8G Click Here</a>
Casting group 14
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
