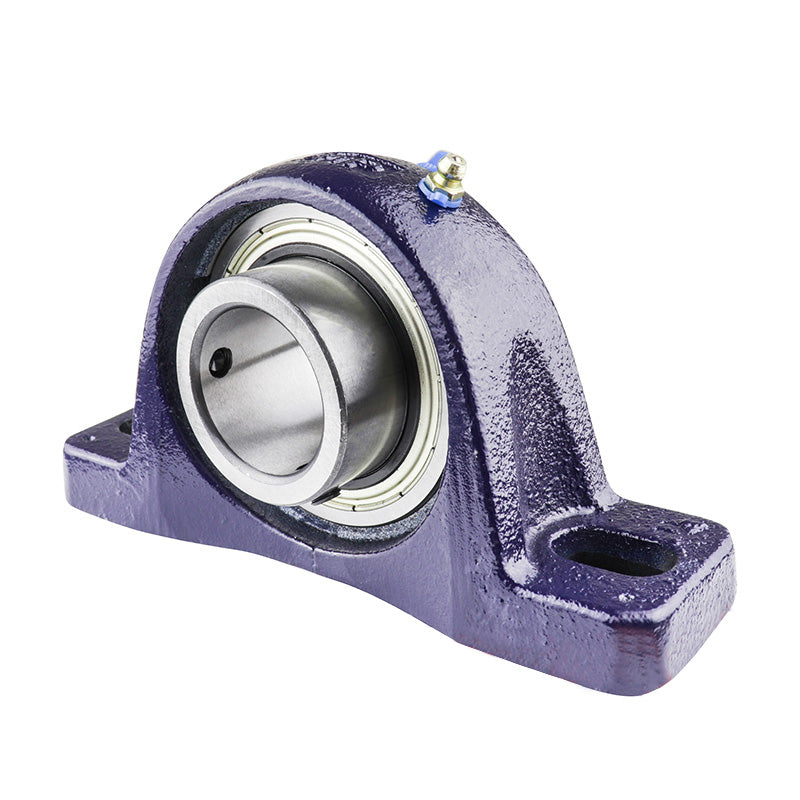

• RHP NP3/4A Two Bolt Cast Iron Pillow Block and 3/4 Bore Grub Screw Flat Back Insert
1 1

SKU: NP3/4A-RHP

RHP NP3/4A Two Bolt Cast Iron Pillow Block and 3/4 Bore Grub Screw Flat Back Insert

RHP NP3/4A Two Bolt Cast Iron Pillow Block and 3/4 Bore Grub Screw Flat Back Insert
$45.51 ex VAT
$45.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.48
20+ $28.77
30+ $28.43
40+ $28.08
50+ $27.74
75+ $27.40
100+ $25.69
200+ $25.34
250+ $25.00
500+ $24.66
1000+ $23.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
NP
Bolt Hole Centres:
3.484-3.957 inch
Technical
Bore 3/4 inch
L 5 inch
H 1.311 inch
H1 0.551 inch
H2 2.567 inch
J max 3.957 inch
J min 3.484 inch
G 0.375 inch
A 1.28 inch
A1 0.886 inch
B1 1.015 inch
s1 0.298 inch
d1 1.122 inch
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.6 kg
Insert <a href="advanced_search_result.php?keywords=1220-3/4AG+insonly">1220-3/4AG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
