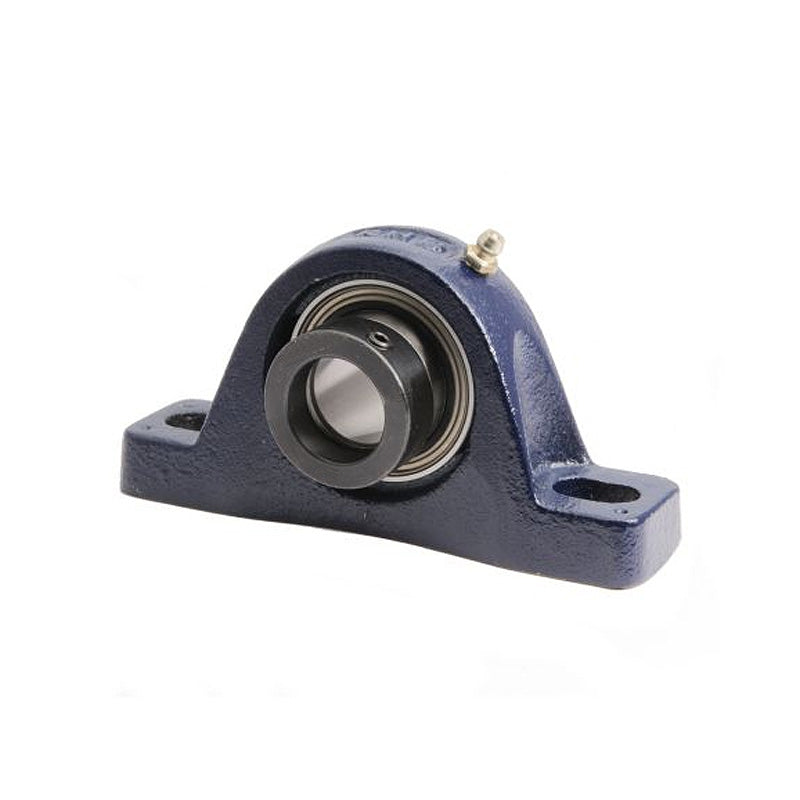

• RHP NP45DEC Two Bolt Cast Iron Pillow Block and 45mm Bore Eccentric Collar Full Width Insert
1 1

SKU: NP45DEC-RHP

RHP NP45DEC Two Bolt Cast Iron Pillow Block and 45mm Bore Eccentric Collar Full Width Insert

RHP NP45DEC Two Bolt Cast Iron Pillow Block and 45mm Bore Eccentric Collar Full Width Insert
$114.36 ex VAT
$114.36 ex VAT
Sale Sold out

In stock

Price Break
10+ $76.60
20+ $72.30
30+ $71.44
40+ $70.58
50+ $69.72
75+ $68.86
100+ $64.55
200+ $63.69
250+ $62.83
500+ $61.97
1000+ $60.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
NP
Bolt Hole Centres:
140.5-154.5mm
Technical
Bore 45mm
L 190.5mm
H 54mm
H1 20mm
H2 108mm
J max 154.5mm
J min 140.5mm
G 12mm
A 54mm
A1 35mm
B3 56.34mm
s2 21.46mm
d2 63.5mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
