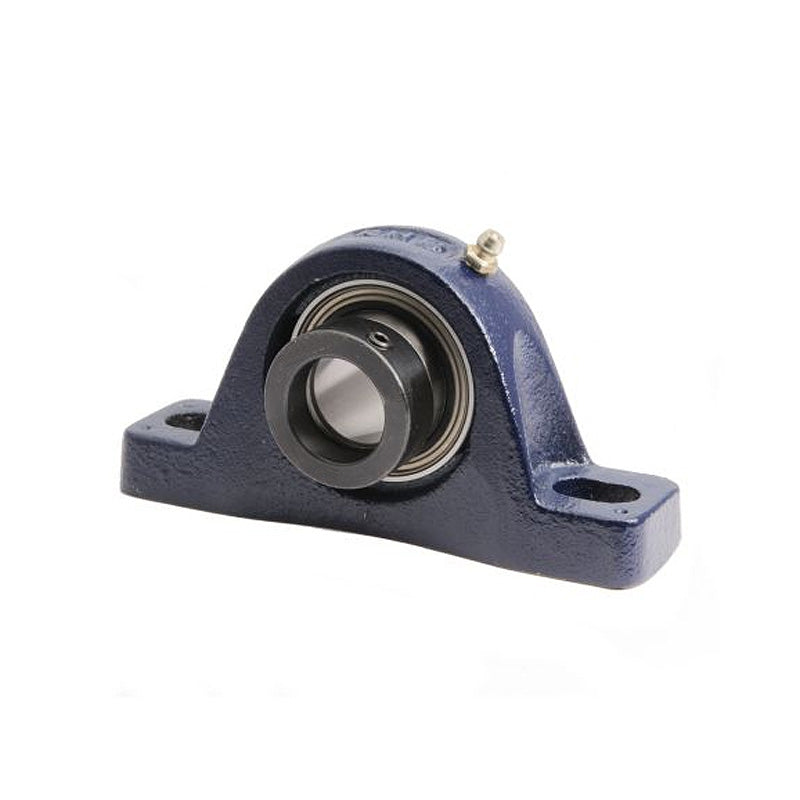

• RHP NP50DEC Two Bolt Cast Iron Pillow Block and 50mm Bore Eccentric Collar Full Width Insert
1 1

SKU: NP50DEC-RHP

RHP NP50DEC Two Bolt Cast Iron Pillow Block and 50mm Bore Eccentric Collar Full Width Insert

RHP NP50DEC Two Bolt Cast Iron Pillow Block and 50mm Bore Eccentric Collar Full Width Insert
$127.28 ex VAT
$127.28 ex VAT
Sale Sold out

In stock

Price Break
10+ $85.25
20+ $80.46
30+ $79.50
40+ $78.55
50+ $77.59
75+ $76.63
100+ $71.84
200+ $70.88
250+ $69.93
500+ $68.97
1000+ $67.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
NP
Bolt Hole Centres:
154-163mm
Technical
Bore 50mm
L 206mm
H 57.2mm
H1 21mm
H2 115.2mm
J max 163mm
J min 154mm
G 16mm
A 55mm
A1 36mm
B3 62.7mm
s2 24.65mm
d2 69.85mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
