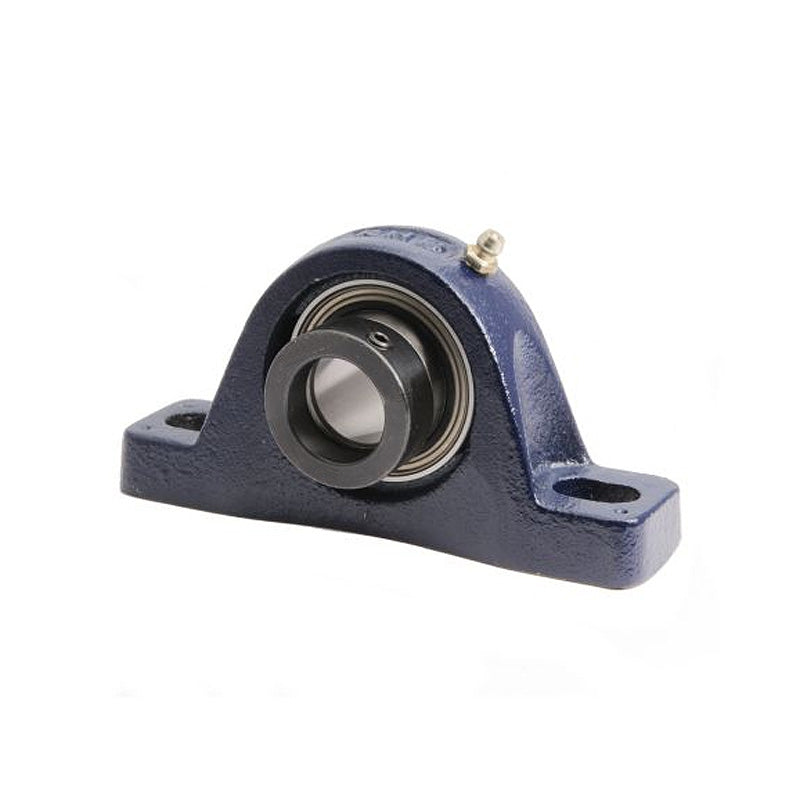

• RHP NP50EC Two Bolt Cast Iron Pillow Block and 50mm Bore Eccentric Collar Flat Back Insert
1 1

SKU: NP50EC-RHP

RHP NP50EC Two Bolt Cast Iron Pillow Block and 50mm Bore Eccentric Collar Flat Back Insert

RHP NP50EC Two Bolt Cast Iron Pillow Block and 50mm Bore Eccentric Collar Flat Back Insert
$112.22 ex VAT
$112.22 ex VAT
Sale Sold out

In stock

Price Break
10+ $75.17
20+ $70.94
30+ $70.10
40+ $69.25
50+ $68.41
75+ $67.56
100+ $63.34
200+ $62.50
250+ $61.65
500+ $60.81
1000+ $59.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
NP
Bolt Hole Centres:
154-163mm
Technical
Bore 50mm
L 206mm
H 57.2mm
H1 21mm
H2 115.2mm
J max 163mm
J min 154mm
G 16mm
A 55mm
A1 36mm
B2 43.64mm
s1 11.05mm
d2 69.85mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
