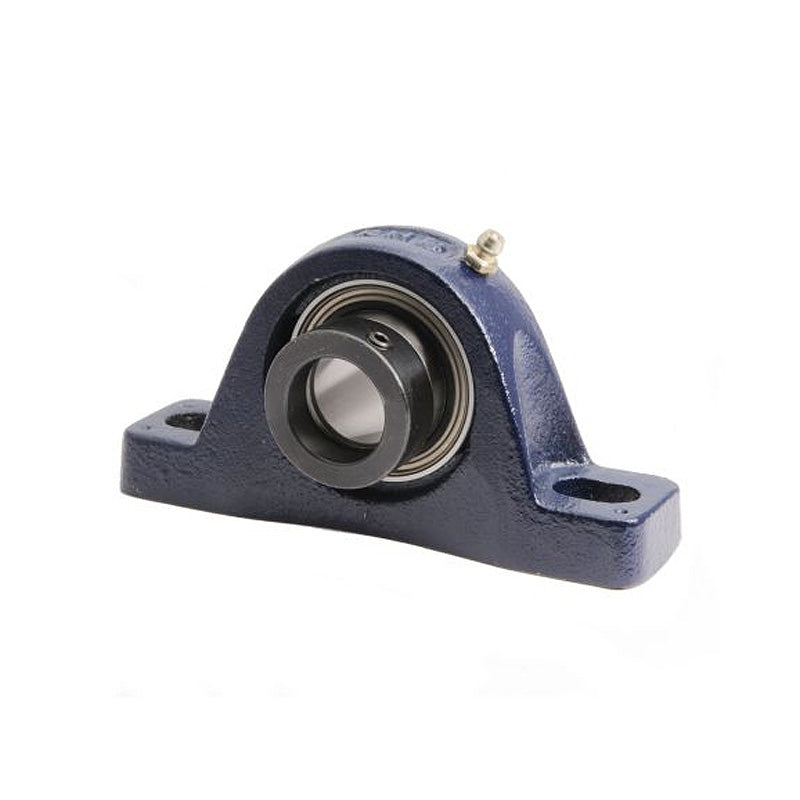

• RHP NP60DEC Two Bolt Cast Iron Pillow Block and 60mm Bore Eccentric Collar Full Width Insert
1 1

SKU: NP60DEC-RHP

RHP NP60DEC Two Bolt Cast Iron Pillow Block and 60mm Bore Eccentric Collar Full Width Insert

RHP NP60DEC Two Bolt Cast Iron Pillow Block and 60mm Bore Eccentric Collar Full Width Insert
$211.71 ex VAT
$211.71 ex VAT
Sale Sold out

In stock

Price Break
10+ $141.82
20+ $133.85
30+ $132.26
40+ $130.66
50+ $129.07
75+ $127.48
100+ $119.51
200+ $117.91
250+ $116.32
500+ $114.73
1000+ $111.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Style:
NP
Bolt Hole Centres:
176.2-192.1mm
Technical
Bore 60mm
L 241.3mm
H 69.9mm
H1 22.2mm
H2 141.3mm
J max 192.1mm
J min 176.2mm
G 16mm
A 69.8mm
A1 46mm
B3 77.82mm
s2 31.02mm
d2 84.12mm
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 5.9 kg
Insert <a href="advanced_search_result.php?keywords=1055-60DECG+insonly">1055-60DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
