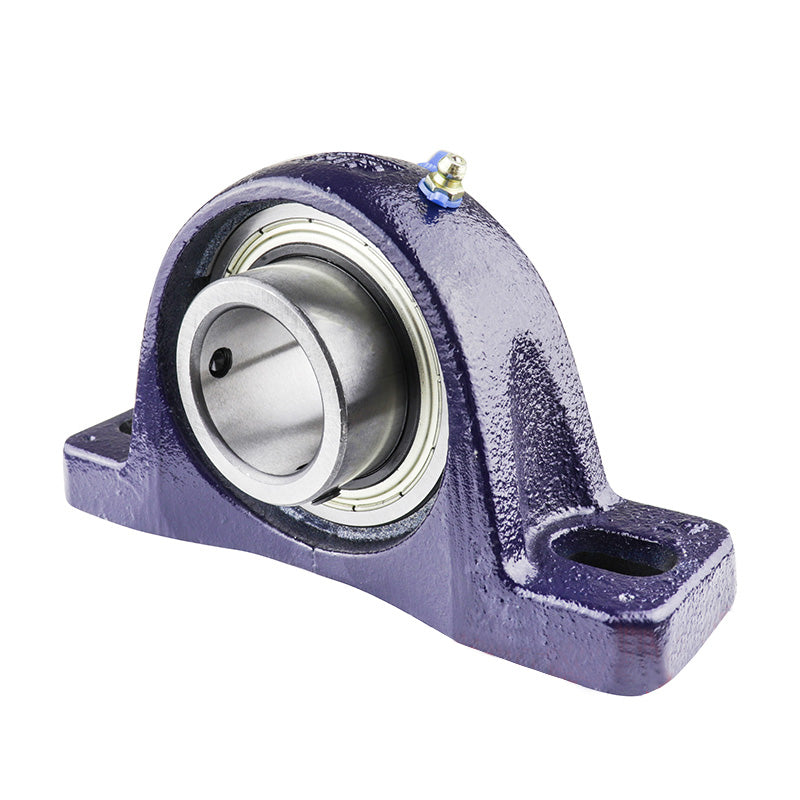

• RHP NP65 Two Bolt Cast Iron Pillow Block and 65mm Bore Grub Screw Full Width Insert
1 1

SKU: NP65-RHP

RHP NP65 Two Bolt Cast Iron Pillow Block and 65mm Bore Grub Screw Full Width Insert

RHP NP65 Two Bolt Cast Iron Pillow Block and 65mm Bore Grub Screw Full Width Insert
$281.25 ex VAT
$281.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $188.39
20+ $177.80
30+ $175.69
40+ $173.57
50+ $171.45
75+ $169.34
100+ $158.75
200+ $156.64
250+ $154.52
500+ $152.40
1000+ $148.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
65mm
Style:
NP
Bolt Hole Centres:
176.2-192.1mm
Technical
Bore 65mm
L 241.3mm
H 69.9mm
H1 22.2mm
H2 141.3mm
J max 192.1mm
J min 176.2mm
G 16mm
A 69.8mm
A1 46mm
B 65.07mm
s 25.45mm
d1 82.4mm
Dynamic load Cr 57500 N
Static load Cor 40000 N
Rec max speed 2600 rpm
Weight 5.9 kg
Insert <a href="advanced_search_result.php?keywords=1065-65G+insonly">1065-65G Click Here</a>
Casting group 10/65
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
