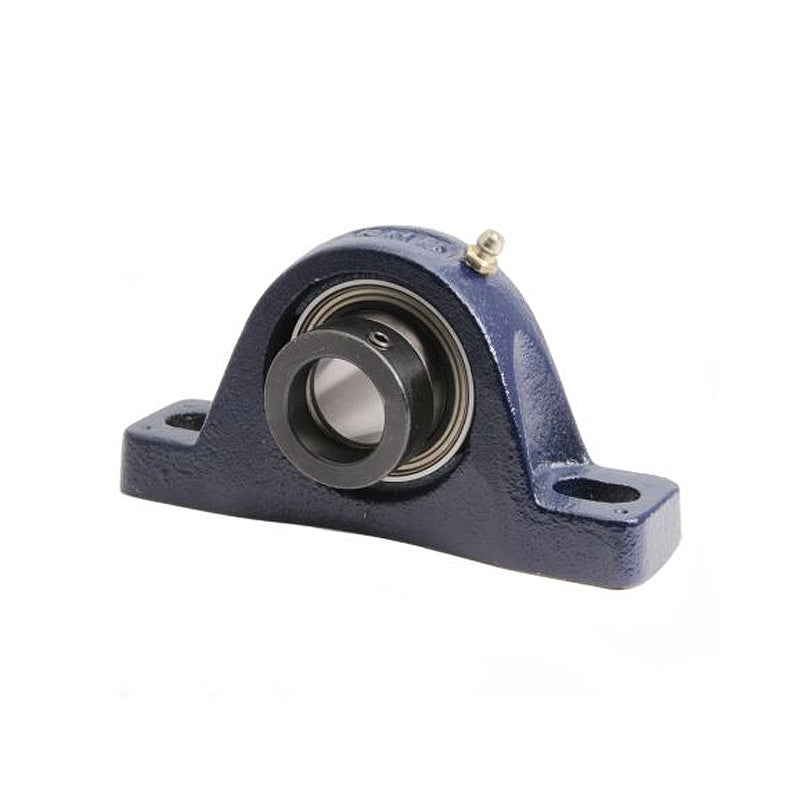

• RHP NP75DEC Two Bolt Cast Iron Pillow Block and 75mm Bore Eccentric Collar Full Width Insert
1 1

SKU: NP75DEC-RHP

RHP NP75DEC Two Bolt Cast Iron Pillow Block and 75mm Bore Eccentric Collar Full Width Insert

RHP NP75DEC Two Bolt Cast Iron Pillow Block and 75mm Bore Eccentric Collar Full Width Insert
$398.33 ex VAT
$398.33 ex VAT
Sale Sold out

In stock

Price Break
10+ $266.81
20+ $251.82
30+ $248.83
40+ $245.83
50+ $242.83
75+ $239.83
100+ $224.84
200+ $221.85
250+ $218.85
500+ $215.85
1000+ $209.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
75mm
Style:
NP
Bolt Hole Centres:
206-228mm
Technical
Bore 75mm
L 275mm
H 82.6mm
H1 28mm
H2 164mm
J max 228mm
J min 206mm
G 24mm
A 74mm
A1 48mm
B3 91.72mm
s2 37.37mm
d2 101.6mm
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 9 kg
Insert <a href="advanced_search_result.php?keywords=1075-75DECG+insonly">1075-75DECG Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
