SKU: NTA1828-TRA1828

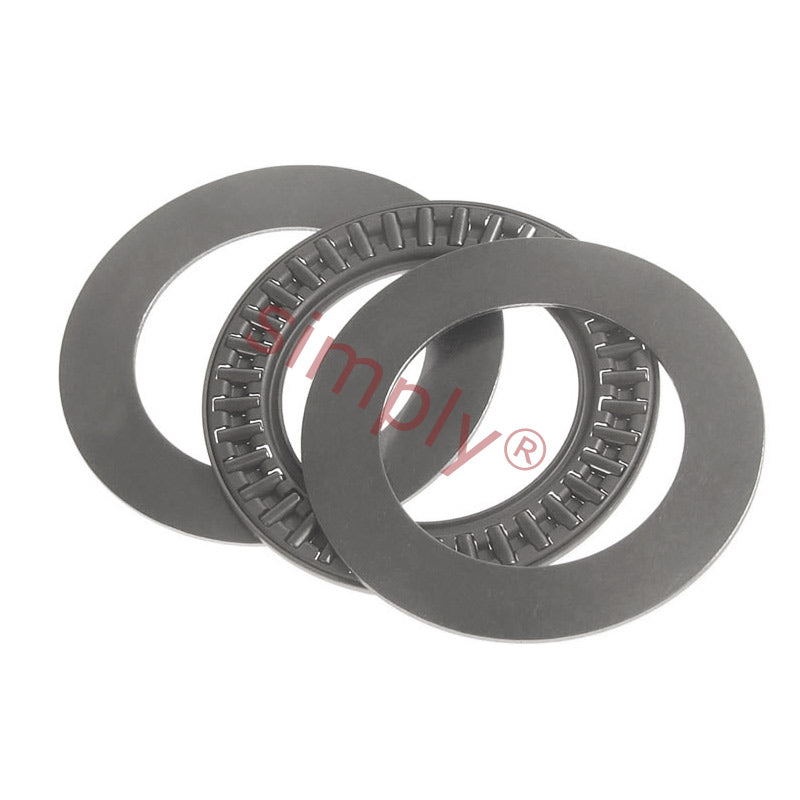

NTA1828 Needle Roller Cage Thrust Assembly with 2 TRA1828 Washers 1.125x1.75x0.1406 inch

Name: NTA1828 Needle Roller Cage Thrust Assembly with 2 TRA1828 Washers 1.125x1.75x0.1406 inch
Brand: Gen
SKU: NTA1828-TRA1828
Price: 9.13 USD
Availability: InStock

$9.13 ex VAT

Sale Sold out

Equivalent to: NTC1828+TRA1828

In stock

Price Break

10+ $6.11

19+ $5.77

29+ $5.70

39+ $5.63

49+ $5.56

74+ $5.49

99+ $5.15

199+ $5.08

249+ $5.01

499+ $4.94

999+ $4.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing.

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 28.58mm = 1.125 (1-1/8) inch
Outside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Width:: 3.57mm = 0.141 (9/64) inch

Technical

d	1.125 inch
D	1.75 inch
Eb	0.0806 inch
Dw	1.21 inch
dw	1.64 inch
Dynamic load	16.68 kN
Static load	71.17 kN
Limiting speed	9600 rpm
Weight	0.008626 kg
Washer	Dimensions
d	1.125 inch
d1	1.75 inch
h min	0.03 inch
h max	0.032 inch
Pilot min	1.122 inch
Pilot max	1.125 inch
Dia to clear washer	1.781 inch
Weight	0.013 lbs
