SKU: NTA2031-TRA2031

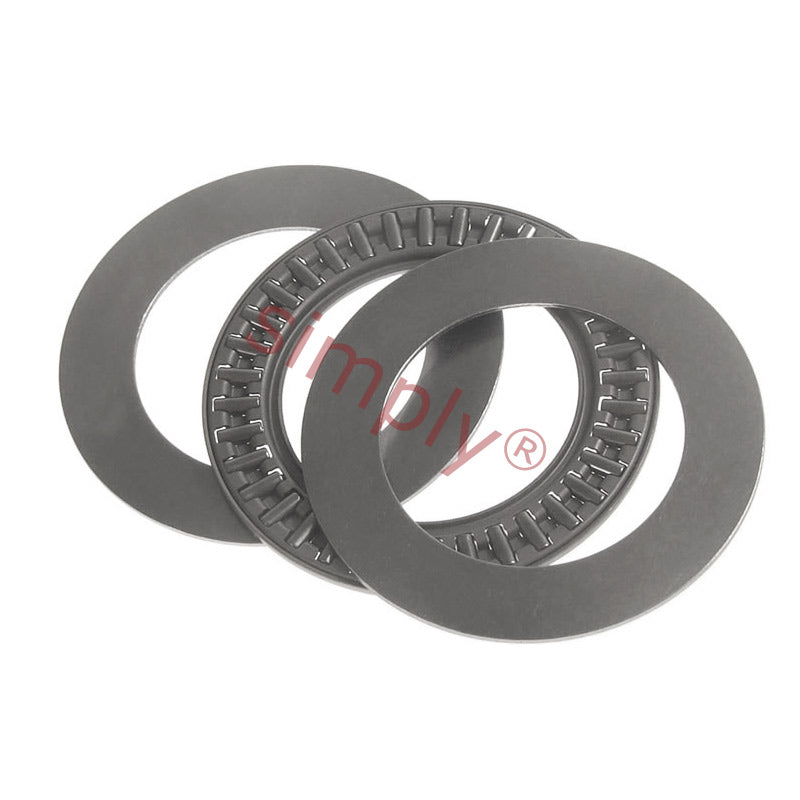

NTA2031 Needle Roller Cage Thrust Assembly with 2 TRA2031 Washers 1.25x1.937x0.1406 inch

Name: NTA2031 Needle Roller Cage Thrust Assembly with 2 TRA2031 Washers 1.25x1.937x0.1406 inch
Brand: Gen
SKU: NTA2031-TRA2031
Price: 9.13 USD
Availability: InStock

$9.13 ex VAT

Sale Sold out

Equivalent to: NTC2031+TRA2031

In stock

Price Break

10+ $6.11

19+ $5.77

29+ $5.70

39+ $5.63

49+ $5.56

74+ $5.49

99+ $5.15

199+ $5.08

249+ $5.01

499+ $4.94

999+ $4.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing.

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 31.75mm = 1.25 (1-1/4) inch
Outside Diameter:: 49.21mm = 1.937 (1-15/16) inch
Width:: 3.57mm = 0.141 (9/64) inch

Technical

d	1.25 inch
D	1.937 inch
Eb	0.0806 inch
Dw	1.34 inch
dw	1.82 inch
Dynamic load	20.15 kN
Static load	93.41 kN
Limiting speed	8600 rpm
Weight	0.009534 kg
Washer	Dimensions
d	1.250 inch
d1	1.937 inch
h min	0.03 inch
h max	0.032 inch
Pilot min	1.247 inch
Pilot max	1.250 inch
Dia to clear washer	1.969 inch
Weight	0.015 lbs
