SKU: NTA2840-TRA2840-MB

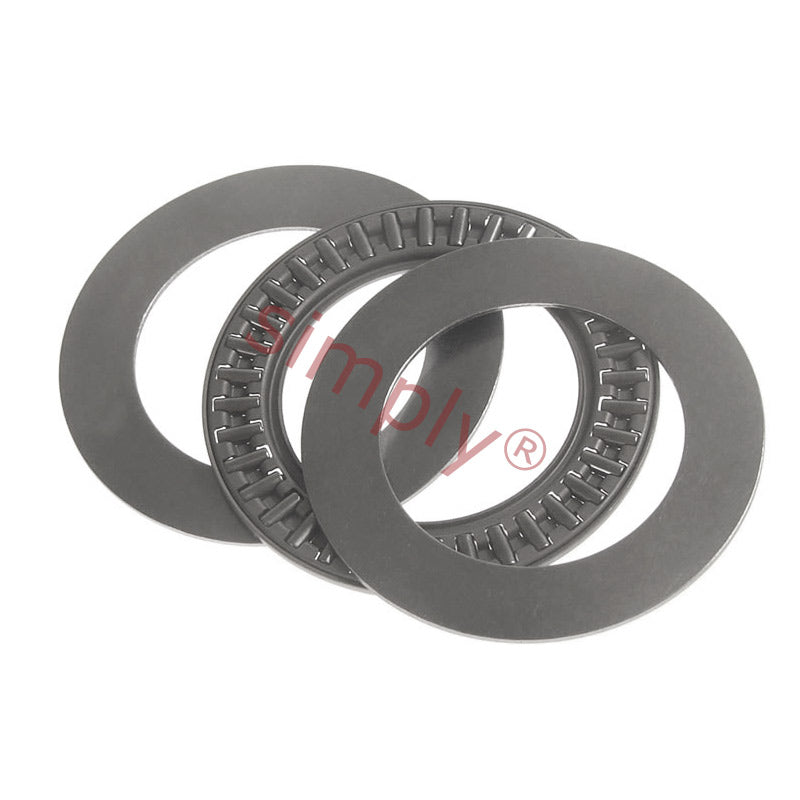

Major Brand NTA2840 Needle Roller Cage Thrust Assembly with 2 TRA2840 Washers 1.75x2.5x0.1406 inch
Major Brand NTA2840 Needle Roller Cage Thrust Assembly with 2 TRA2840 Washers 1.75x2.5x0.1406 inch
Equivalent to: NTC2840+TRA2840
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 1.75 inch |
|---|---|
| D | 2.5 inch |
| Eb | 0.0806 inch |
| Dw | 1.84 inch |
| dw | 2.32 inch |
| Dynamic load | 25.31 kN |
| Static load | 137.45 kN |
| Limiting speed | 6800 rpm |
| Weight | 0.014074 kg |
| Washer | Dimensions |
| d | 1.750 inch |
| d1 | 2.5 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 1.747 inch |
| Pilot max | 1.750 inch |
| Dia to clear washer | 2.531 inch |
| Weight | 0.021 lbs |
