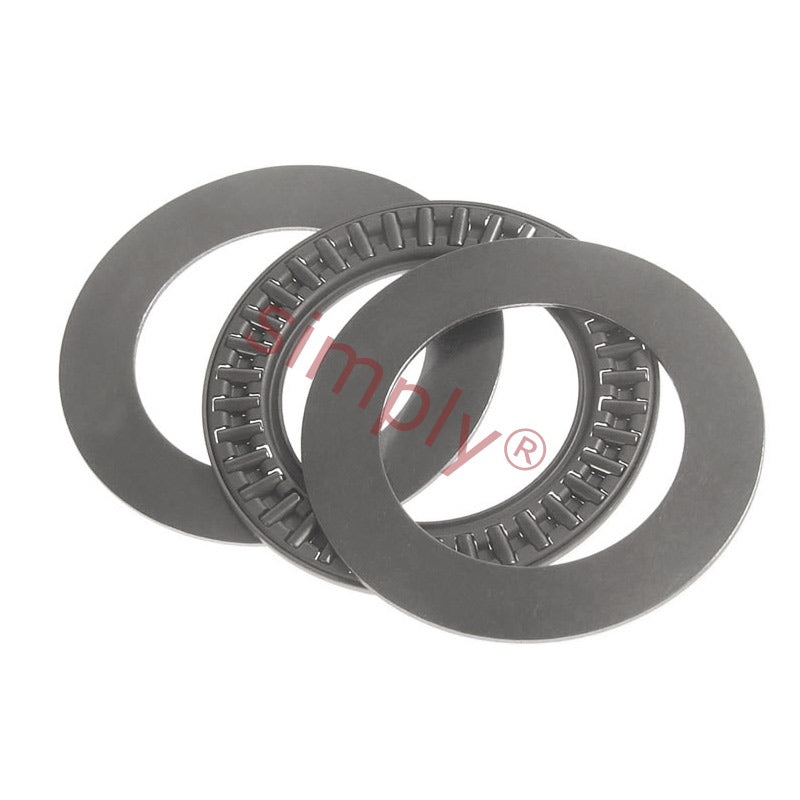

• NTA3648 Needle Roller Cage Thrust Assembly with 2 TRA3648 Washers 2.25x3x0.1406 inch
1 1

SKU: NTA3648-TRA3648

NTA3648 Needle Roller Cage Thrust Assembly with 2 TRA3648 Washers 2.25x3x0.1406 inch

NTA3648 Needle Roller Cage Thrust Assembly with 2 TRA3648 Washers 2.25x3x0.1406 inch
$20.79 ex VAT
$20.79 ex VAT
Sale Sold out

Equivalent to: NTC3648+TRA3648

In stock

Price Break
10+ $13.93
19+ $13.15
29+ $12.99
39+ $12.83
49+ $12.68
74+ $12.52
99+ $11.74
199+ $11.58
249+ $11.43
499+ $11.27
999+ $10.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Outside Diameter:
76.2mm = 3 inch
Width:
3.57mm = 0.141 (9/64) inch
Technical
d 2.25 inch
D 3 inch
Eb 0.0806 inch
Dw 2.34 inch
dw 2.82 inch
Dynamic load 24.78 kN
Static load 142.34 kN
Limiting speed 5600 rpm
Weight 0.017252 kg
Washer Dimensions
d 2.25 inch
d1 3 inch
h min 0.03 inch
h max 0.032 inch
Pilot min 2.997 inch
Pilot max 3.000 inch
Dia to clear washer 3.781 inch
Weight 0.034 lbs
