SKU: NTA4458-TRA4458

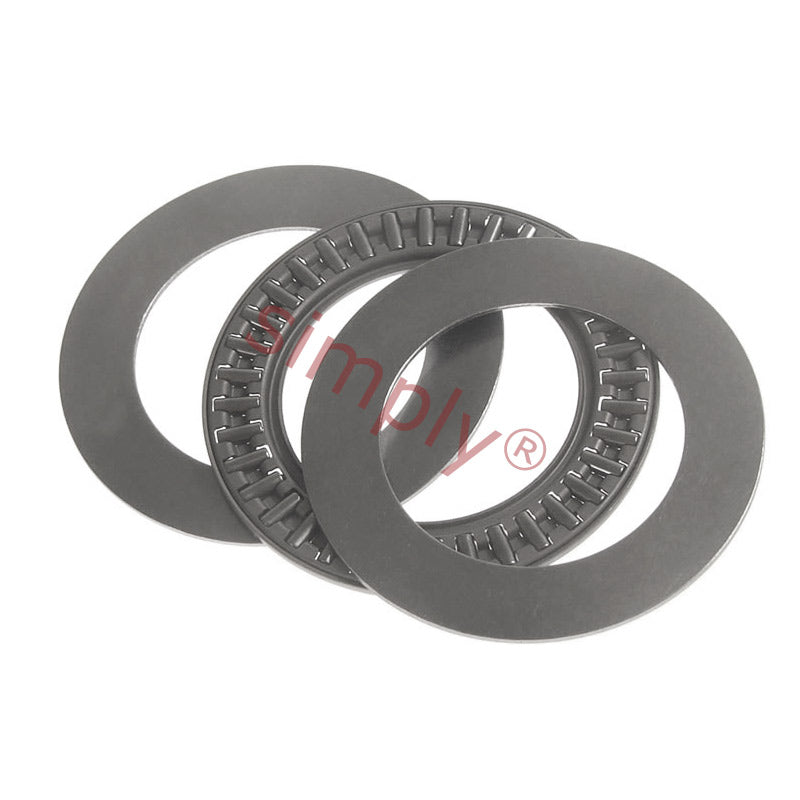

NTA4458 Needle Roller Cage Thrust Assembly with 2 TRA4458 Washers 2.75x3.625x0.1875 inch

Name: NTA4458 Needle Roller Cage Thrust Assembly with 2 TRA4458 Washers 2.75x3.625x0.1875 inch
Brand: Gen
SKU: NTA4458-TRA4458
Price: 20.00 USD
Availability: InStock

$20.00 ex VAT

Sale Sold out

Equivalent to: NTC4458+TRA4458

In stock

Price Break

10+ $13.39

19+ $12.64

29+ $12.49

39+ $12.34

49+ $12.19

74+ $12.04

99+ $11.29

199+ $11.14

249+ $10.99

499+ $10.84

999+ $10.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 69.85mm = 2.75 (2-3/4) inch
Outside Diameter:: 92.08mm = 3.625 (3-5/8) inch
Width:: 4.76mm = 0.187 (3/16) inch

Technical

d	2.75 inch
D	3.625 inch
Eb	0.1275 inch
Dw	2.86 inch
dw	3.46 inch
Dynamic load	47.60 kN
Static load	255.80 kN
Limiting speed	4600 rpm
Weight	0.037228 kg
Washer	Dimensions
d	2.750 inch
d1	3.625 inch
h min	0.03 inch
h max	0.032 inch
Pilot min	2.747 inch
Pilot max	2.750 inch
Dia to clear washer	3.656 inch
Weight	0.039 lbs
