SKU: NTA512-TRA512

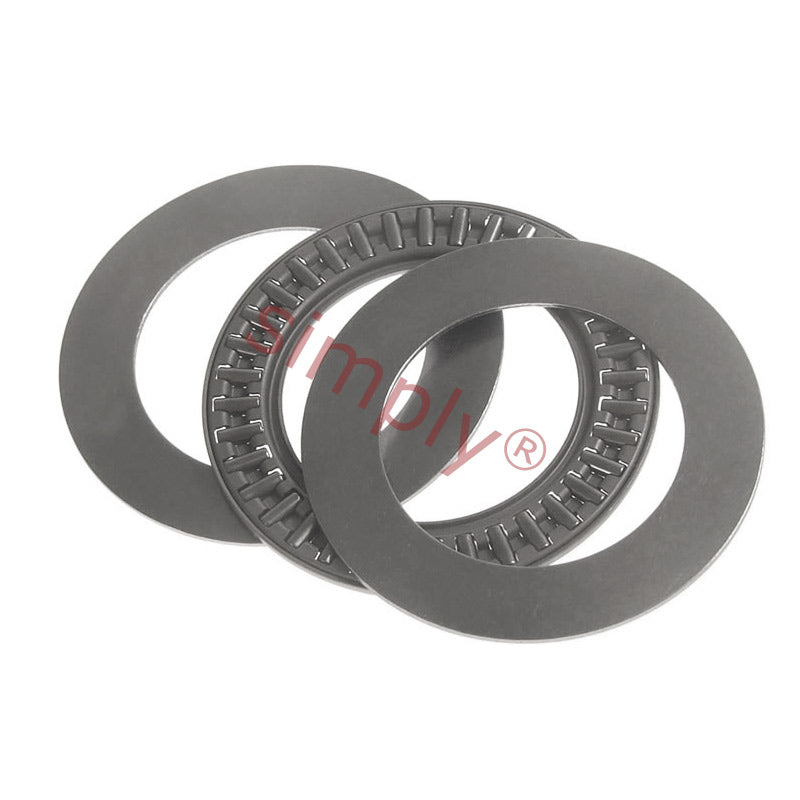

NTA512 Needle Roller Cage Thrust Assembly with 2 TRA512 Washers 0.312x0.75x0.1406 inch
- Regular price
- $9.24 ex VAT
- Sale price
- $9.24
- Regular price
-
Not in stock
Quantity Price Breaks
10
$8.22
19
$7.76
29
$7.67
39
$7.58
49
$7.48
74
$7.39
99
$6.93
199
$6.84
249
$6.75
499
$6.65
999
$6.47
SKU:
NTA512-TRA512
NTA512 Needle Roller Cage Thrust Assembly with 2 TRA512 Washers 0.312x0.75x0.1406 inch
- Regular price
- $9.24 ex VAT
- Sale price
- $9.24
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 0.312 inch |
| D | = | 0.75 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 0.40 inch |
| dw | = | 0.64 inch |
| Dynamic load | = | 5.83 kN |
| Static load | = | 13.17 kN |
| Limiting speed | = | 24000 rpm |
| Weight | = | 0.001816 kg |
| Washer | = | Dimensions |
| d | = | 0.312 inch |
| d1 | = | 0.75 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 0.309 inch |
| Pilot max | = | 0.312 inch |
| Dia to clear washer | = | 0.781 inch |
| Weight | = | 0.003 lbs |
