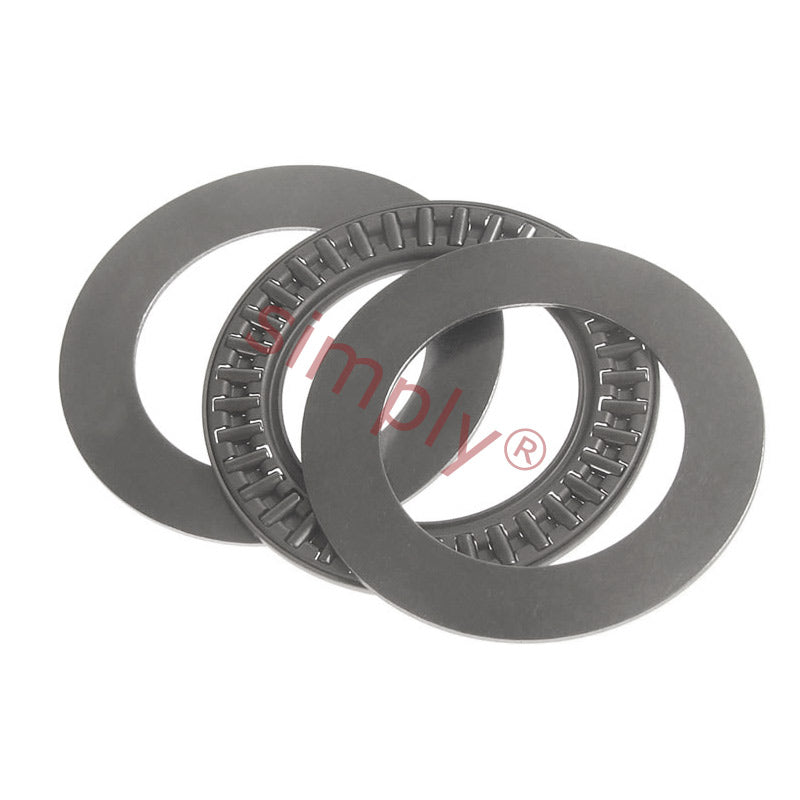

Major Brand NTA6074 Needle Roller Cage Thrust Assembly with 2 TRA6074 Washers 3.25x4.625x0.1875 inch
Major Brand NTA6074 Needle Roller Cage Thrust Assembly with 2 TRA6074 Washers 3.25x4.625x0.1875 inch
Equivalent to: NTC6074+TRA6074
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 117.48mm = 4.625 (4-5/8) inch
- Width:
- 4.76mm = 0.187 (3/16) inch
Technical
Technical
| d | 3.75 inch |
|---|---|
| D | 4.625 inch |
| Eb | 0.1275 inch |
| Dw | 3.86 inch |
| dw | 4.46 inch |
| Dynamic load | 56.05 kN |
| Static load | 344.30 kN |
| Limiting speed | 3500 rpm |
| Weight | 0.04994 kg |
| Washer | Dimensions |
| d | 3.750 inch |
| d1 | 4.625 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 3.747 inch |
| Pilot max | 3.750 inch |
| Dia to clear washer | 4.656 inch |
| Weight | 0.050 lbs |
