SKU: NTB1629-MB

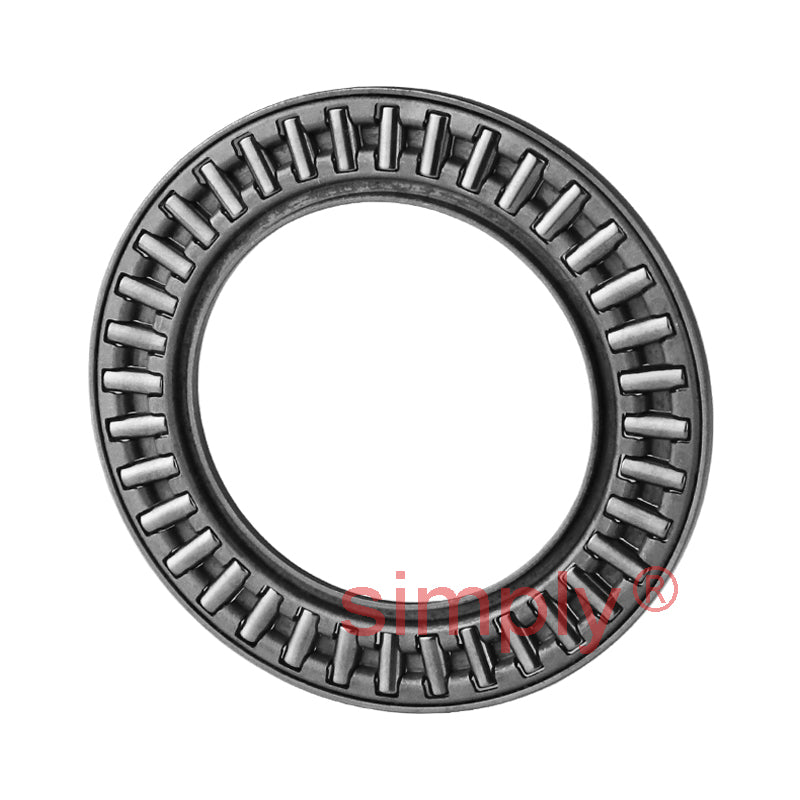

NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
Regular price
$4.36
ex VAT
Regular price
Sale price
$4.36
ex VAT
Equivalent to: AXK1629 FNT1629
In stock
Price Break
10+
$2.92
20+
$2.75
30+
$2.72
40+
$2.69
50+
$2.65
75+
$2.62
100+
$2.46
200+
$2.43
250+
$2.39
500+
$2.36
1000+
$2.29
Quantity
Couldn't load pickup availability
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 29mm
- Width:
- 2mm
Technical
Technical
| D | 29mm |
|---|---|
| Dw | 2mm |
| d | 16mm |
| Dynamic Load Cor | 9070 N |
| Static Load Cr | 31400 N |
| Weight | 0.0043 kg |
