SKU: NU1014ML/C3-SKF

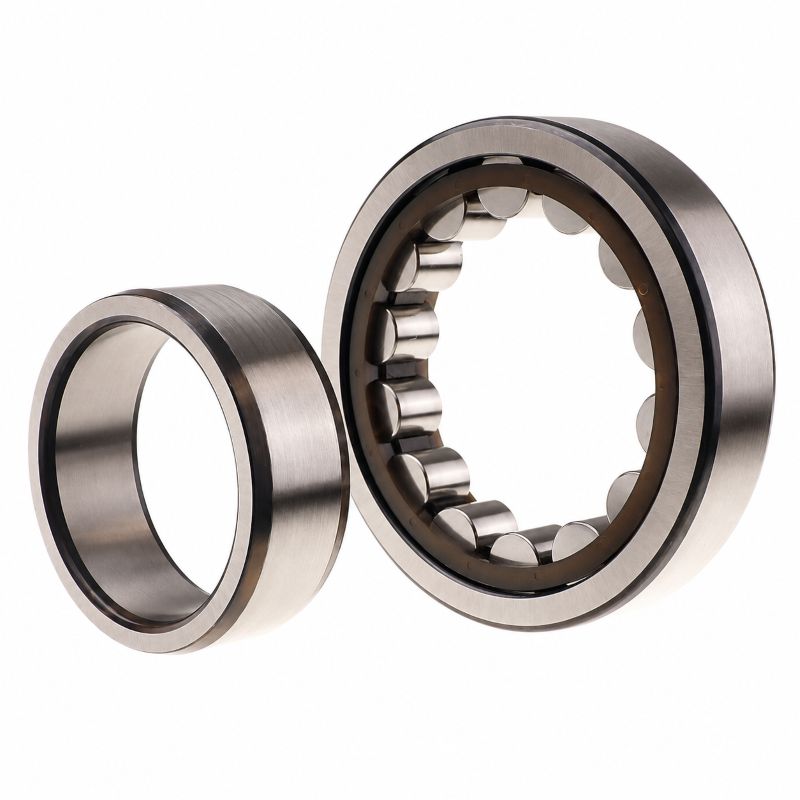

SKF NU1014MLC3 Single Row Cylindrical Roller Bearing with Brass Cage 70x110x20mm
SKF NU1014MLC3 Single Row Cylindrical Roller Bearing with Brass Cage 70x110x20mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 20mm |
| Dynamic load C | 76.5 kN |
| Static load Co | 93 kN |
| Fatigue load limit Pu | 12 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 7000 rpm |
| Weight | 0.62 kg |
| d1 | 84mm |
| D1 | 97.5mm |
| F,E | 79.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1mm |
| S | 1.3mm |
| da min | 74.6mm |
| da max | 78mm |
| db | 82mm |
| Da max | 104mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.1 |
| Angle ring | HJ1014EC |
| Angle ring weight | 0.082 kg |
| B1 | 5mm |
| B2 | 10mm |
