SKU: NU205EM1/C3-FAG

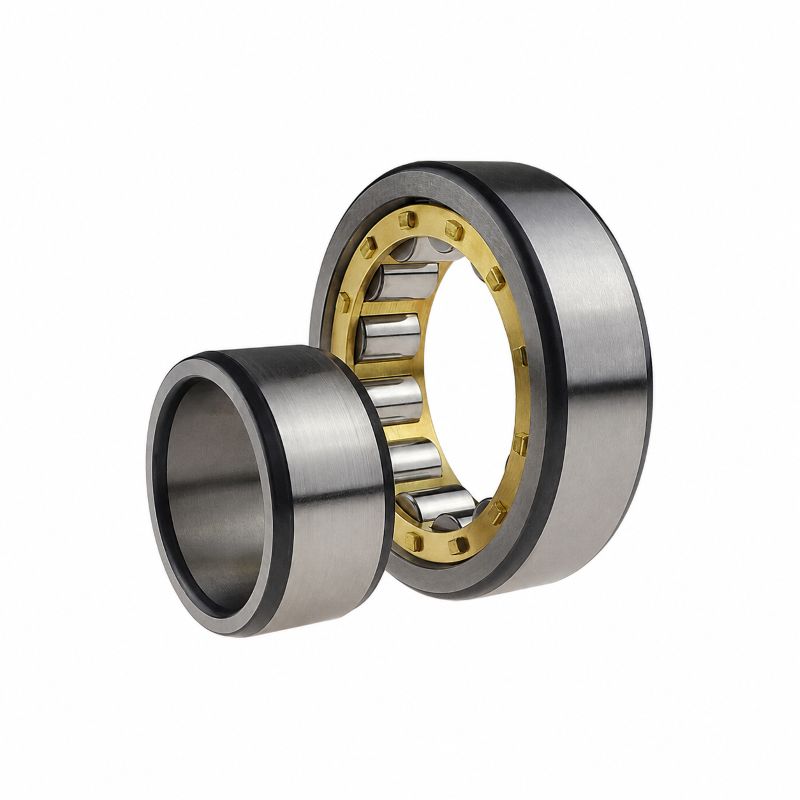

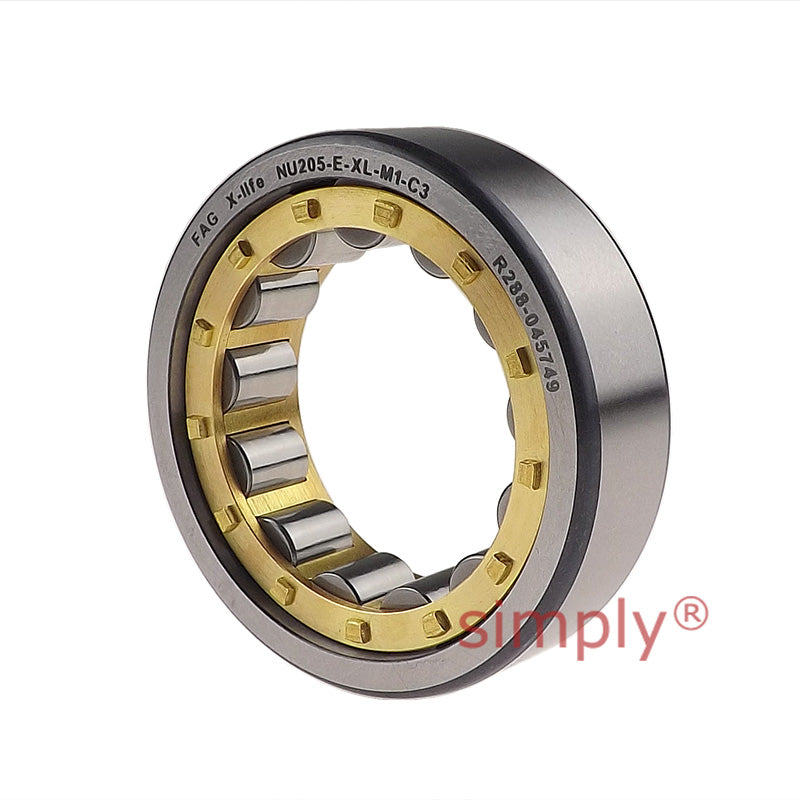

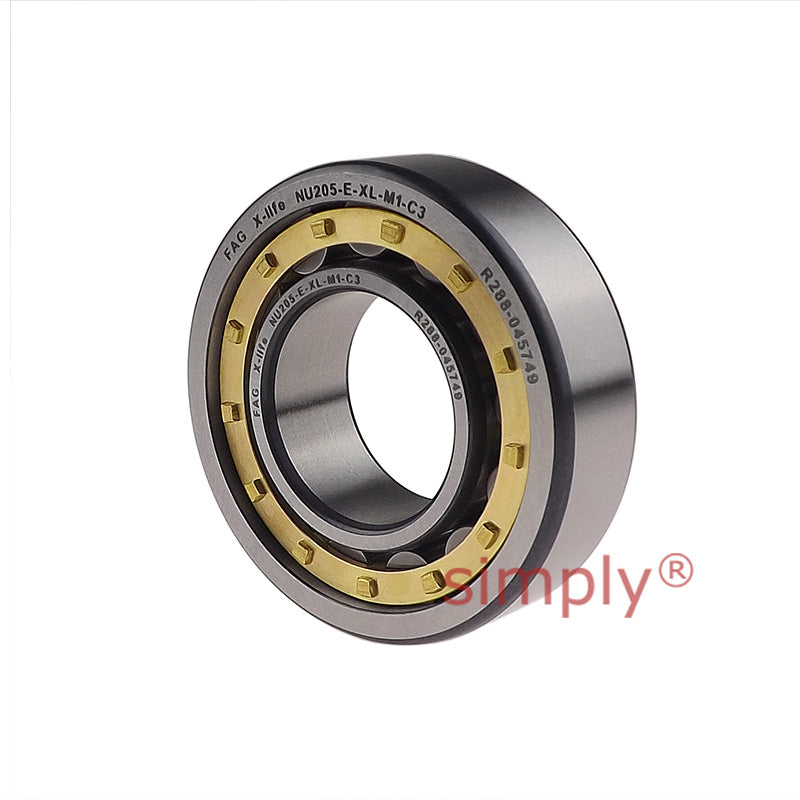

FAG NU205EM1C3 X-life Single Row Cylindrical Roller Bearing with Brass Cage 25x52x15mm

Name: FAG NU205EM1C3 X-life Single Row Cylindrical Roller Bearing with Brass Cage 25x52x15mm
Brand: FAG
SKU: NU205EM1/C3-FAG
Price: 78.78 USD
Availability: InStock

$78.78 ex VAT

Sale Sold out

In stock

Price Break

10+ $52.77

19+ $49.80

29+ $49.21

39+ $48.62

49+ $48.02

74+ $47.43

99+ $44.47

199+ $43.87

249+ $43.28

499+ $42.69

999+ $41.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction.
Benefits: Axial displacement tolerant, ease of assembly and fitting

Brand / Quality:: FAG - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: C3

Technical

d	25mm
D	52mm
B	15mm
Weight	0.14kg
r min	1
r1 min	0.6
s1	1.2
E	46.5mm
F	31.5mm
D1	43.8mm
Cr	34500N
C0r	27500N
