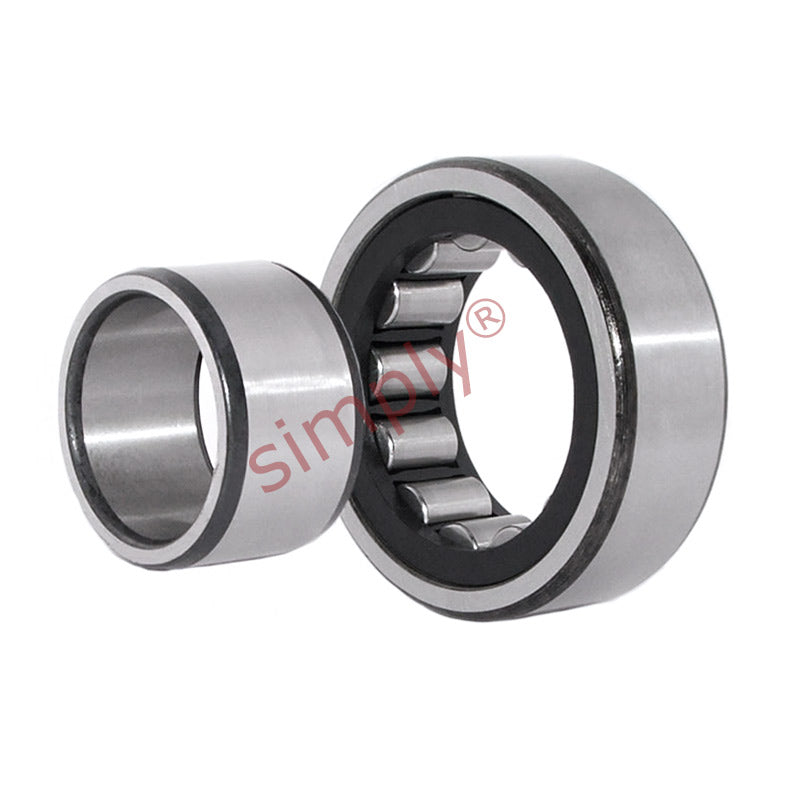

• NU207-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 35x72x17mm
1 1

SKU: NU207-ETVP2/C3-MB

NU207-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 35x72x17mm

NU207-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 35x72x17mm
$40.83 ex VAT
$40.83 ex VAT
Sale Sold out

Low stock

Price Break
10+ $27.35
19+ $25.81
29+ $25.51
39+ $25.20
49+ $24.89
74+ $24.58
99+ $23.05
199+ $22.74
249+ $22.43
499+ $22.13
999+ $21.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction.
Benefits: Axial displacement tolerant, ease of assembly and fitting
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
None
Clearance:
C3
Technical
d 35
D 72
B 17
r min 1.1
r1 min 0.6
s 0.7
E 64
F 44
D1 61
da min 39
da max 43
db min 46
Da max 65
ra max 1
ra1 max 0.6
Dynamic load 58000 N
Static load 48500 N
Fatigue limit load 6400 N
Limiting speed 10000 rpm
Reference speed 8300 rpm
Weight 0.303 kg
