SKU: NU207ECJ/C3-SKF

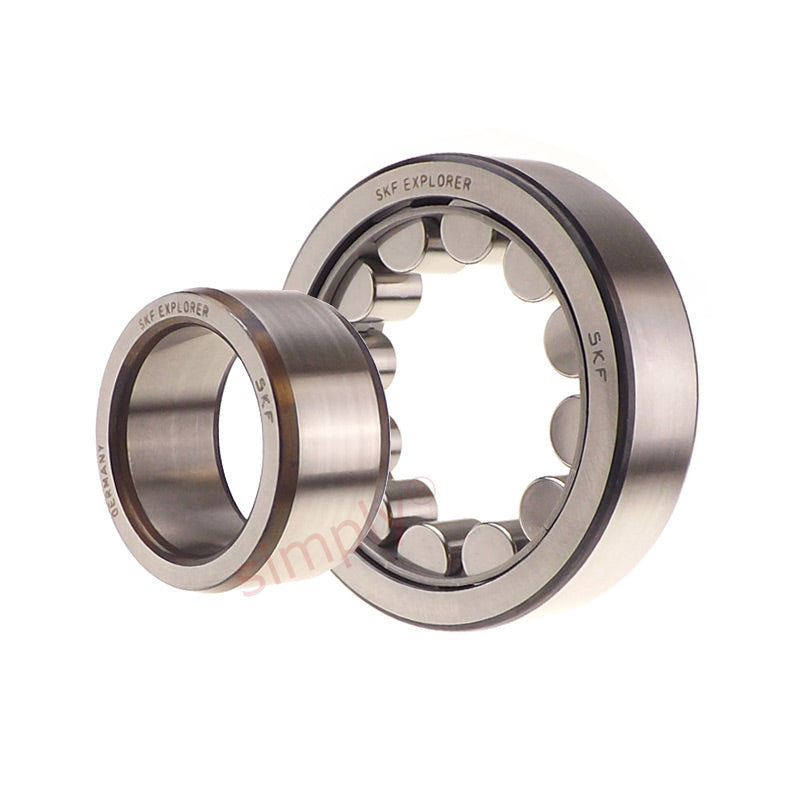

SKF NU207ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 35x72x17mm
SKF NU207ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 35x72x17mm
Regular price
$68.24
ex VAT
Regular price
Sale price
$68.24
ex VAT
In stock
Price Break
10+
$45.71
19+
$43.14
29+
$42.63
39+
$42.11
49+
$41.60
74+
$41.09
99+
$38.52
199+
$38.00
249+
$37.49
499+
$36.98
999+
$35.95
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| D1 | 60.7mm |
| B | 17mm |
| F | 44mm |
| Dynamic load | 56 kN |
| Static load | 48 kN |
| Fatigue load | 6.1 kN |
| Reference speed | 11000rpm |
| Limiting speed | 12000rpm |
| r1,2min | 1.1mm |
| r3,4min | 0.6mm |
| s | 1.3mm |
| Weight | 0.31kg |
