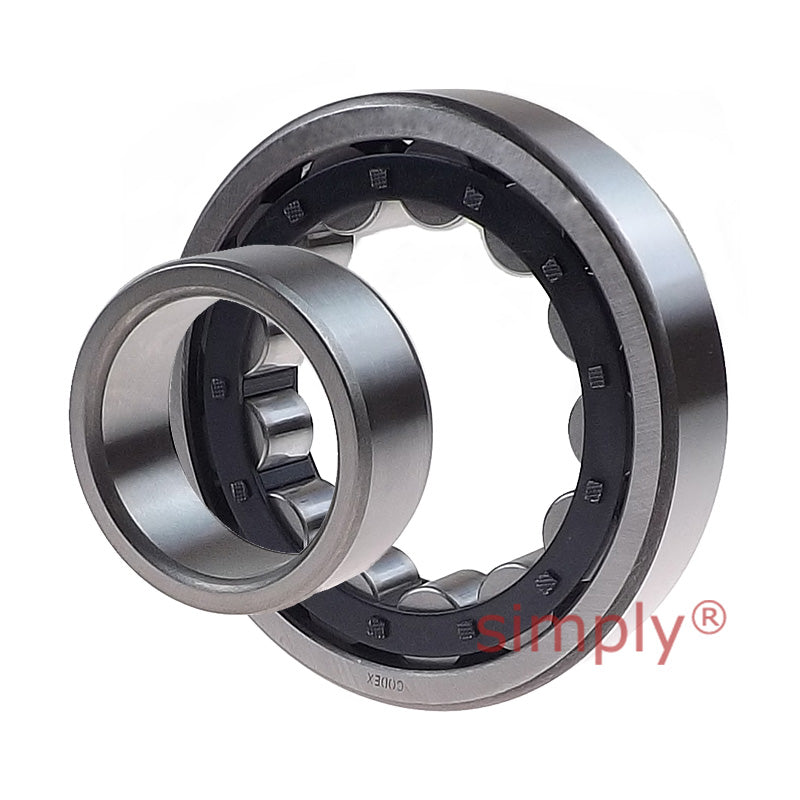

• Codex NU214 Single Row Cylindrical Roller Bearing 70x125x24mm
  • Codex
1 2

SKU: NU214-CDX

Codex NU214 Single Row Cylindrical Roller Bearing 70x125x24mm

Codex NU214 Single Row Cylindrical Roller Bearing 70x125x24mm
$96.49 ex VAT
$96.49 ex VAT
Sale Sold out

In stock

Price Break
10+ $64.63
19+ $61.00
29+ $60.27
39+ $59.55
49+ $58.82
74+ $58.10
99+ $54.46
199+ $53.74
249+ $53.01
499+ $52.29
999+ $50.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Inside Diameter:
70mm
Outside Diameter:
125mm
Width:
24mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 70mm
D 125mm
B 24mm
Dynamic load C 137 kN
Static load Co 137 kN
Fatigue load limit Pu 18 kN
Reference speed 6000 rpm
Limiting speed 6300 rpm
Weight 1.15 kg
Cage options J.M.ML
d1 89.4mm
D1 109mm
F, E 83.5mm
r1r2 min 1.5mm
r3r4 min 1.5mm
s 1.2mm
da min 79mm
da max 81mm
db min 86mm
Da max 116mm
ra max 1.5mm
rb max 1.5mm
kr 0.15
Angle ring HJ214EC
Angle ring weight 0.15kg
B1 7mm
B2 11mm
