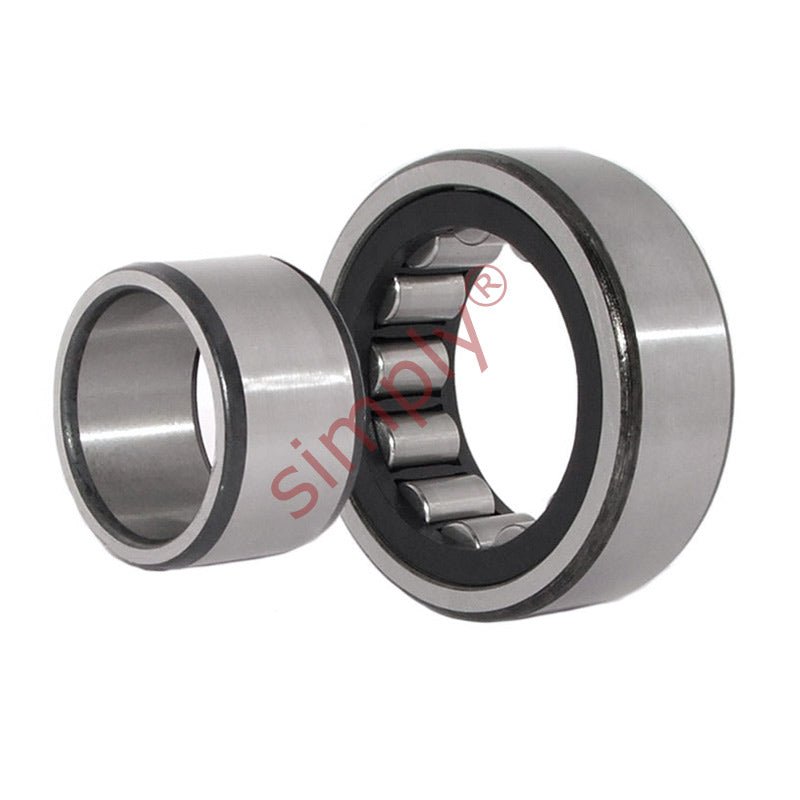

SKF NU218ECMC3VL0241 Insocoat Cylindrical Roller Bearing 90x160x30mm

Name: SKF NU218ECMC3VL0241 Insocoat Cylindrical Roller Bearing 90x160x30mm
Brand: SKF
SKU: NU218ECM/C3VL0241-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 90mm
Outside Diameter:: 160mm
Width:: 30mm
Seals / Shields:: None
Clearance:: C3

Technical

d	90mm
D	160mm
B	30mm
Dynamic load C	208 kN
Static load Co	220 kN
Fatigue load limit Pu	27 kN
Reference speed	4500 rpm
Limiting speed	5000 rpm
Weight	2.75 kg
D1	139mm
F	107mm
r1r2 min	2mm
r1r4 min	2mm
s	1.8mm
da min	101mm
da max	104mm
db min	110mm
Da min	144mm
Da max	149mm
ra max	2mm
rb max	2mm
kr	0.15
