SKU: NU2207-CDX

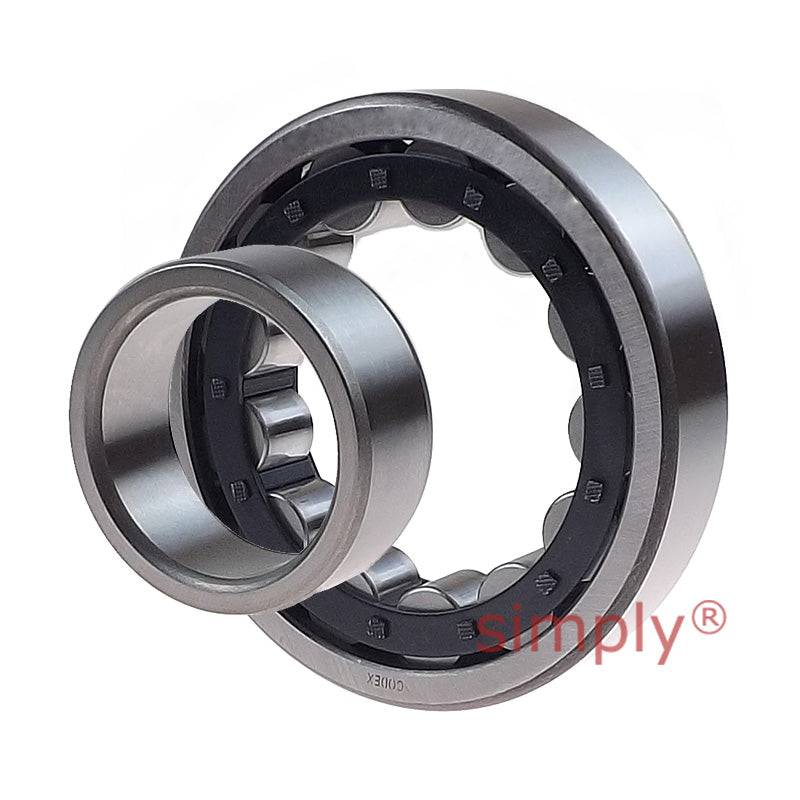

Codex NU2207 Single Row Cylindrical Roller Bearing 35x72x23mm

Name: Codex NU2207 Single Row Cylindrical Roller Bearing 35x72x23mm
Brand: Codex
SKU: NU2207-CDX
Price: 48.27 USD
Availability: InStock

$48.27 ex VAT

Sale Sold out

In stock

Price Break

10+ $32.34

19+ $30.52

29+ $30.16

39+ $29.79

49+ $29.43

74+ $29.07

99+ $27.25

199+ $26.89

249+ $26.52

499+ $26.16

999+ $25.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Width:: 23mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	35mm
D	72mm
B	23mm
Dynamic load C	69.5 kN
Static load Co	63 kN
Fatigue load limit Pu	8.15 kN
Reference speed	11000 rpm
Limiting speed	12000 rpm
Weight	0.4 kg
Cage options	J.ML
D1	60.7mm
F, E	44mm
r1r2 min	1.1mm
r3r4 min	0.6mm
s	2.8mm
da min	39.2mm
da max	42mm
db min	46mm
Da max	65mm
ra max	1mm
rb max	0.6mm
kr	0.2
