SKU: NU2212-CDX

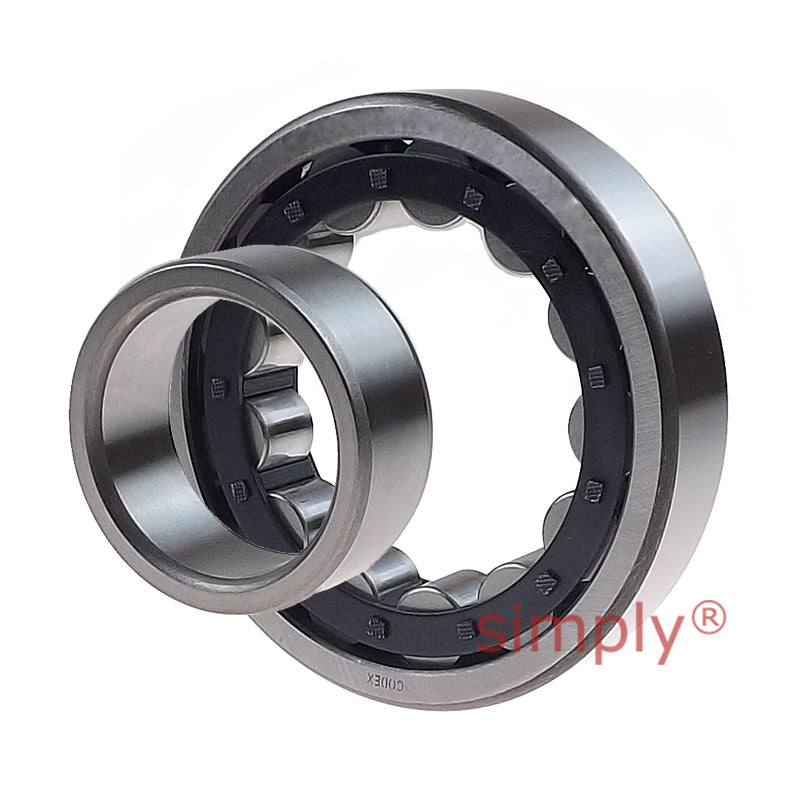

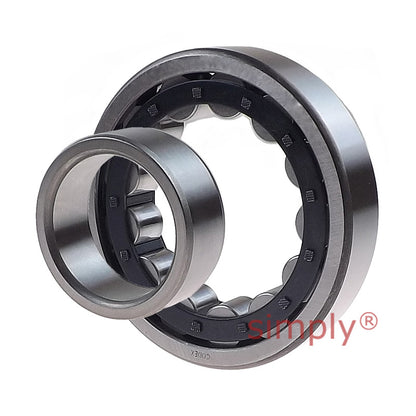

Codex NU2212 Single Row Cylindrical Roller Bearing 60x110x28mm

Name: Codex NU2212 Single Row Cylindrical Roller Bearing 60x110x28mm
Brand: Codex
SKU: NU2212-CDX
Price: 92.65 USD
Availability: InStock

$92.65 ex VAT

Sale Sold out

In stock

Price Break

10+ $62.06

19+ $58.57

29+ $57.88

39+ $57.18

49+ $56.48

74+ $55.78

99+ $52.30

199+ $51.60

249+ $50.90

499+ $50.21

999+ $48.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 60mm
Outside Diameter:: 110mm
Width:: 28mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	60mm
D	110mm
B	28mm
Dynamic load C	146 kN
Static load Co	153 kN
Fatigue load limit Pu	20 kN
Reference speed	6700 rpm
Limiting speed	7500 rpm
Weight	1.05 kg
Cage options	J.M.ML
d1	77.5mm
D1	95.7mm
F, E	72mm
r1r2 min	1.5mm
r3r4 min	1.5mm
s	1.4mm
da min	69mm
da max	70mm
db min	74mm
Da max	101mm
ra max	1.5mm
rb max	1.5mm
kr	0.2
Angle ring	HJ212EC
Angle ring weight	0.1kg
B1	6mm
B2	10mm
