SKU: NU2305-CDX

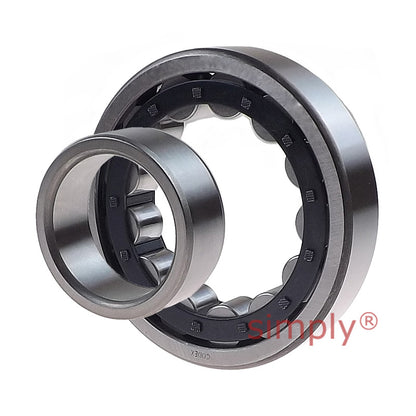

Codex NU2305 Single Row Cylindrical Roller Bearing 25x62x24mm

Name: Codex NU2305 Single Row Cylindrical Roller Bearing 25x62x24mm
Brand: Codex
SKU: NU2305-CDX
Price: 47.89 USD
Availability: InStock

$47.89 ex VAT

Sale Sold out

In stock

Price Break

10+ $32.08

19+ $30.28

29+ $29.92

39+ $29.56

49+ $29.19

74+ $28.83

99+ $27.03

199+ $26.67

249+ $26.31

499+ $25.95

999+ $25.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction.
Benefits: Axial displacement tolerant, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 25mm
Outside Diameter:: 62mm
Width:: 24mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	25mm
D	62mm
B	24mm
Dynamic load C	64 kN
Static load Co	55 kN
Fatigue load limit Pu	6.95 kN
Reference speed	12000 rpm
Limiting speed	15000 rpm
Weight	0.34 kg
Cage options	J.ML
d1	38.1mm
D1	50.7mm
F, E	34mm
r1r2 min	1.1mm
r3r4 min	1.1mm
s	2.3mm
da min	32mm
da max	32mm
db min	36mm
Da max	55mm
ra max	1mm
rb max	1mm
kr	0.25
Angle ring	HJ2305EC
Angle ring weight	0.025kg
B1	4mm
B2	8mm
