SKU: NU2306-CDX

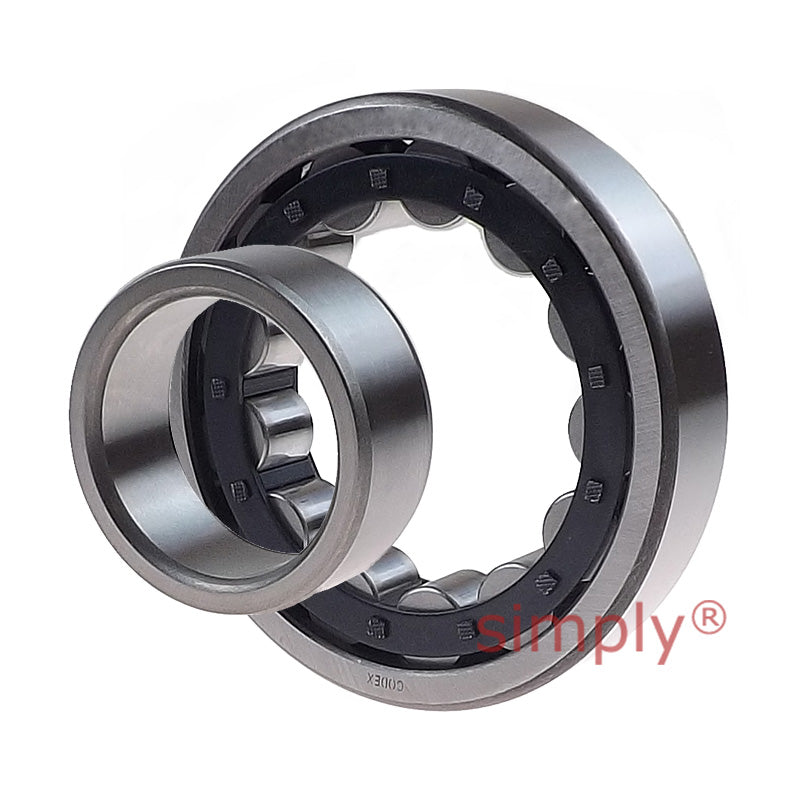

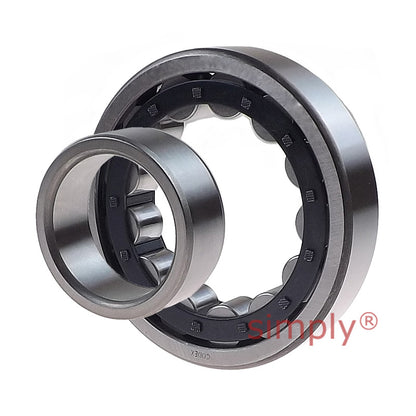

Codex NU2306 Single Row Cylindrical Roller Bearing 30x72x27mm

Name: Codex NU2306 Single Row Cylindrical Roller Bearing 30x72x27mm
Brand: Codex
SKU: NU2306-CDX
Price: 58.42 USD
Availability: InStock

$58.42 ex VAT

Sale Sold out

In stock

Price Break

10+ $39.13

19+ $36.93

29+ $36.49

39+ $36.05

49+ $35.62

74+ $35.18

99+ $32.98

199+ $32.54

249+ $32.10

499+ $31.66

999+ $30.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction.
Benefits: Axial displacement tolerant, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 30mm
Outside Diameter:: 72mm
Width:: 27mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	30mm
D	72mm
B	27mm
Dynamic load C	83 kN
Static load Co	75 kN
Fatigue load limit Pu	9.65 kN
Reference speed	11000 rpm
Limiting speed	12000 rpm
Weight	0.53 kg
Cage options	ML
D1	58.9mm
F, E	40.5mm
r1r2 min	1.1mm
r3r4 min	1.1mm
s	2.4mm
da min	37mm
da max	39mm
db min	42mm
Da max	65mm
ra max	1mm
rb max	1mm
kr	0.25
