SKU: NU2309-CDX

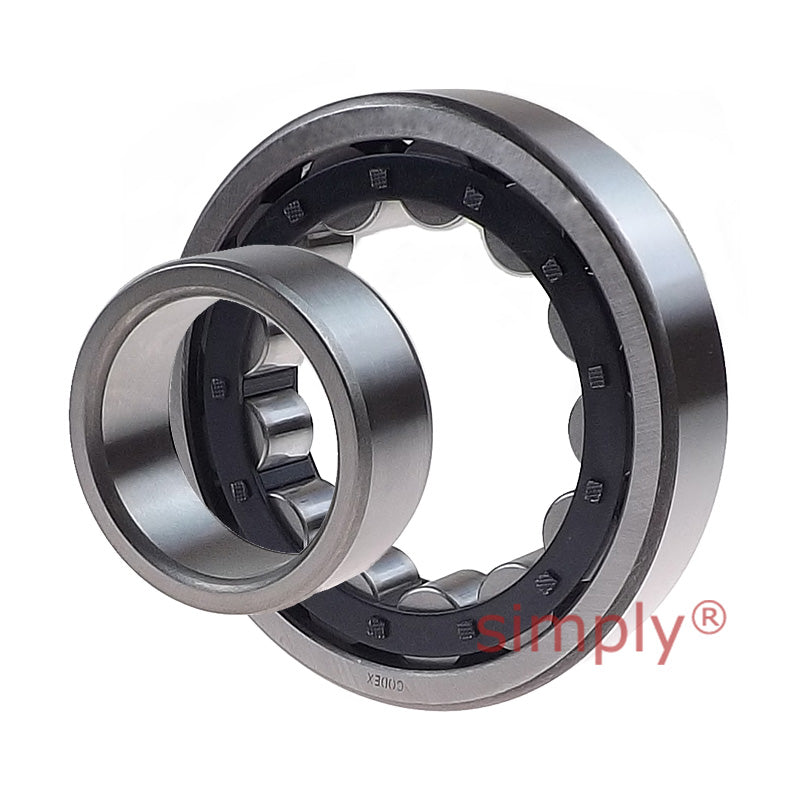

Codex NU2309 Single Row Cylindrical Roller Bearing 45x100x36mm

Name: Codex NU2309 Single Row Cylindrical Roller Bearing 45x100x36mm
Brand: Codex
SKU: NU2309-CDX
Price: 100.38 USD
Availability: InStock

$100.38 ex VAT

Sale Sold out

In stock

Price Break

10+ $67.24

19+ $63.46

29+ $62.71

39+ $61.95

49+ $61.20

74+ $60.44

99+ $56.66

199+ $55.91

249+ $55.15

499+ $54.40

999+ $52.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 45mm
Outside Diameter:: 100mm
Width:: 36mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	45mm
D	100mm
B	36mm
Dynamic load C	160 kN
Static load Co	153 kN
Fatigue load limit Pu	20 kN
Reference speed	7500 rpm
Limiting speed	8500 rpm
Weight	1.3 kg
Cage options	ML
D1	83.8mm
F, E	58.5mm
r1r2 min	1.5mm
r3r4 min	1.5mm
s	3.2mm
da min	54mm
da max	56mm
db min	61mm
Da max	91mm
ra max	1.5mm
rb max	1.5mm
kr	0.25
