SKU: NU2310-CDX

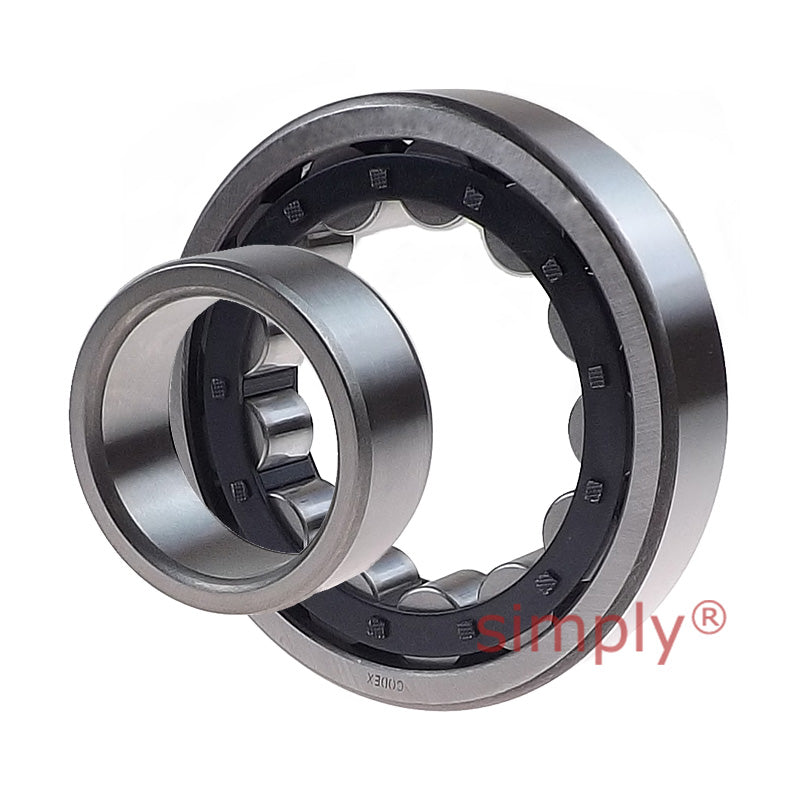

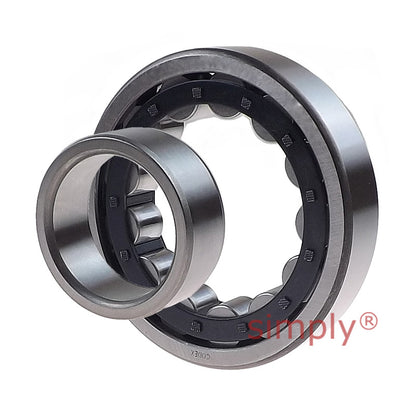

Codex NU2310 Single Row Cylindrical Roller Bearing 50x110x40mm

Name: Codex NU2310 Single Row Cylindrical Roller Bearing 50x110x40mm
Brand: Codex
SKU: NU2310-CDX
Price: 121.08 USD
Availability: InStock

$121.08 ex VAT

Sale Sold out

In stock

Price Break

10+ $81.10

19+ $76.55

29+ $75.63

39+ $74.72

49+ $73.81

74+ $72.90

99+ $68.34

199+ $67.43

249+ $66.52

499+ $65.61

999+ $63.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction.
Benefits: Axial displacement tolerant, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 50mm
Outside Diameter:: 110mm
Width:: 40mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	50mm
D	110mm
B	40mm
Dynamic load C	0.186 kN
Static load Co	186 kN
Fatigue load limit Pu	24.5 kN
Reference speed	6700 rpm
Limiting speed	8000 rpm
Weight	1.73 kg
Cage options	ML
D1	92.1mm
F, E	65mm
r1r2 min	2mm
r3r4 min	2mm
s	3.4mm
da min	61mm
da max	63mm
db min	67mm
Da max	99mm
ra max	2mm
rb max	2mm
kr	0.25
