SKU: NU2310-EU

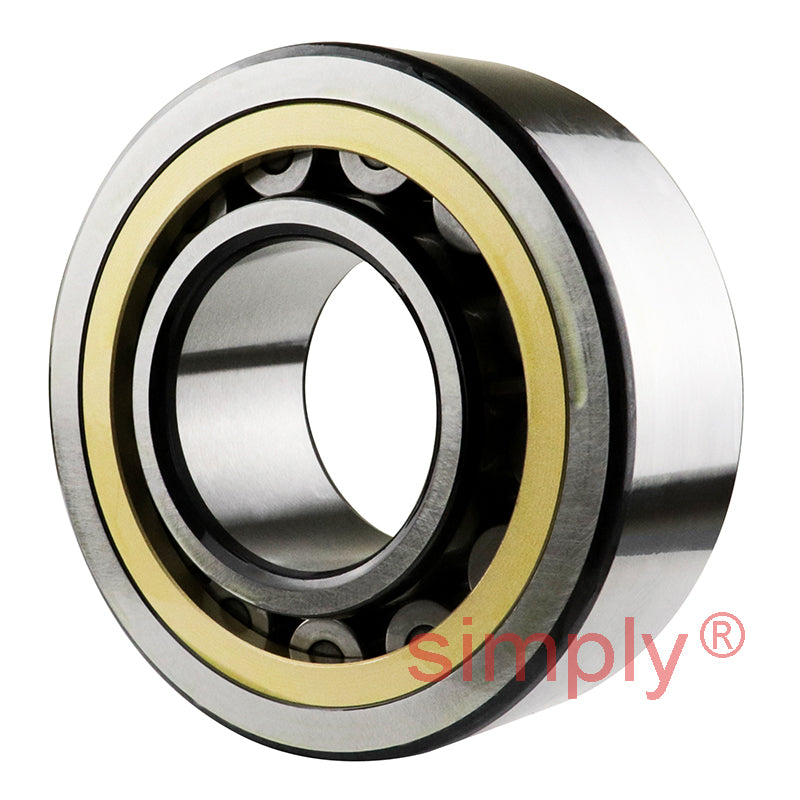

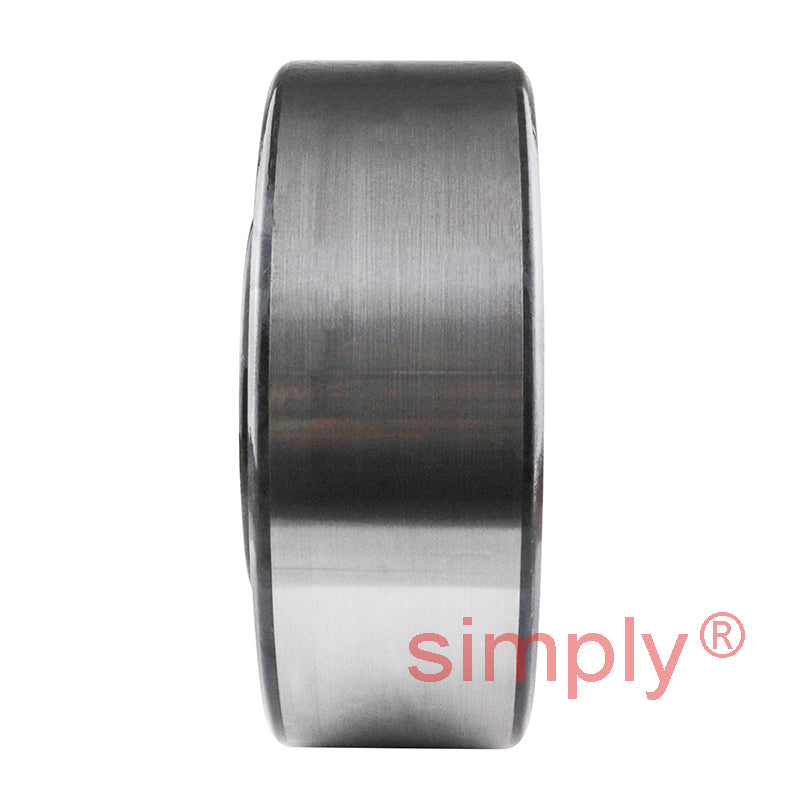

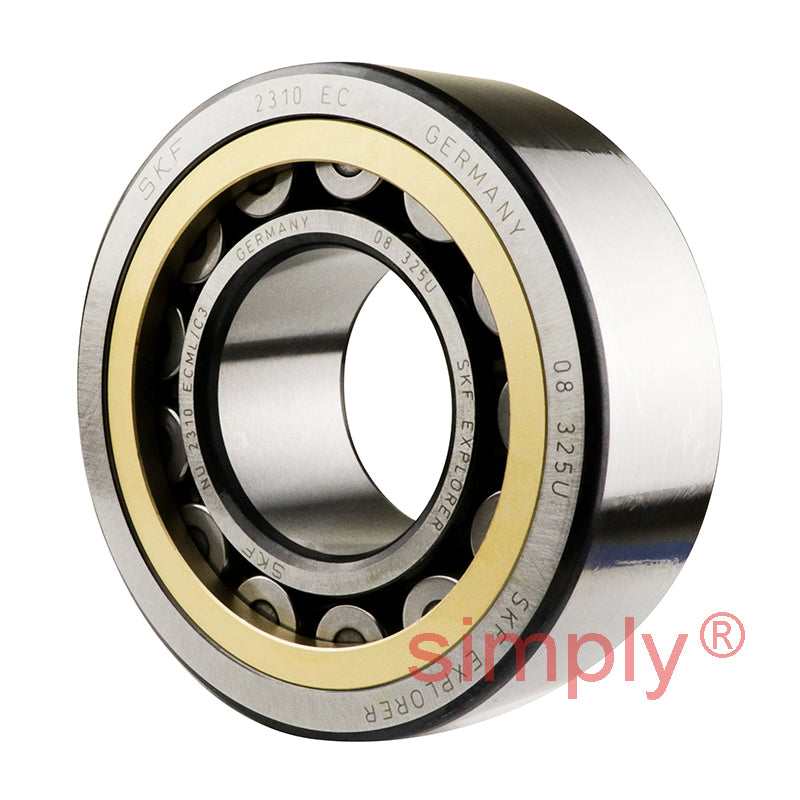

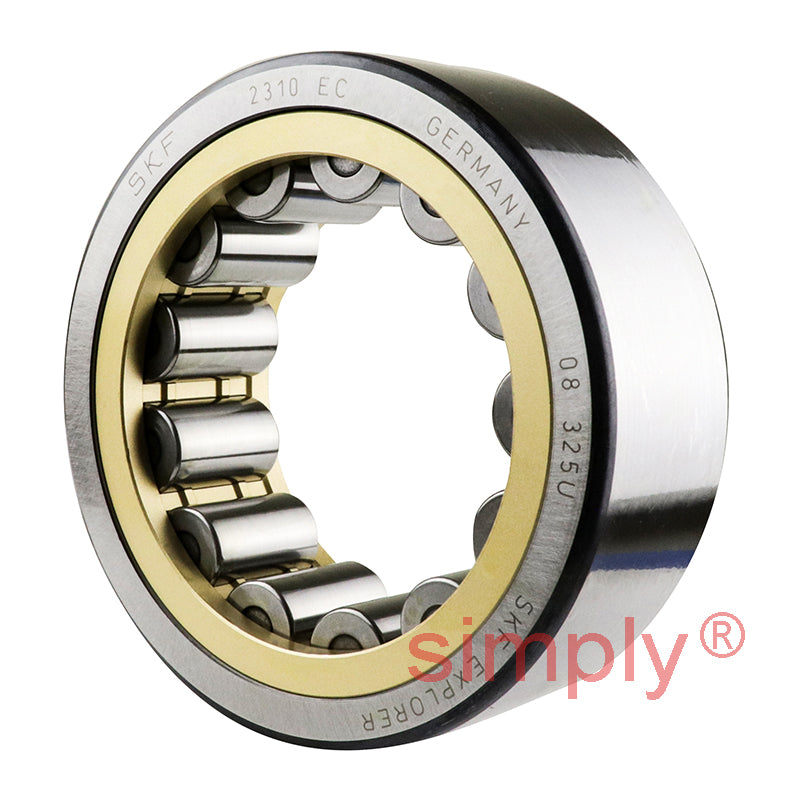

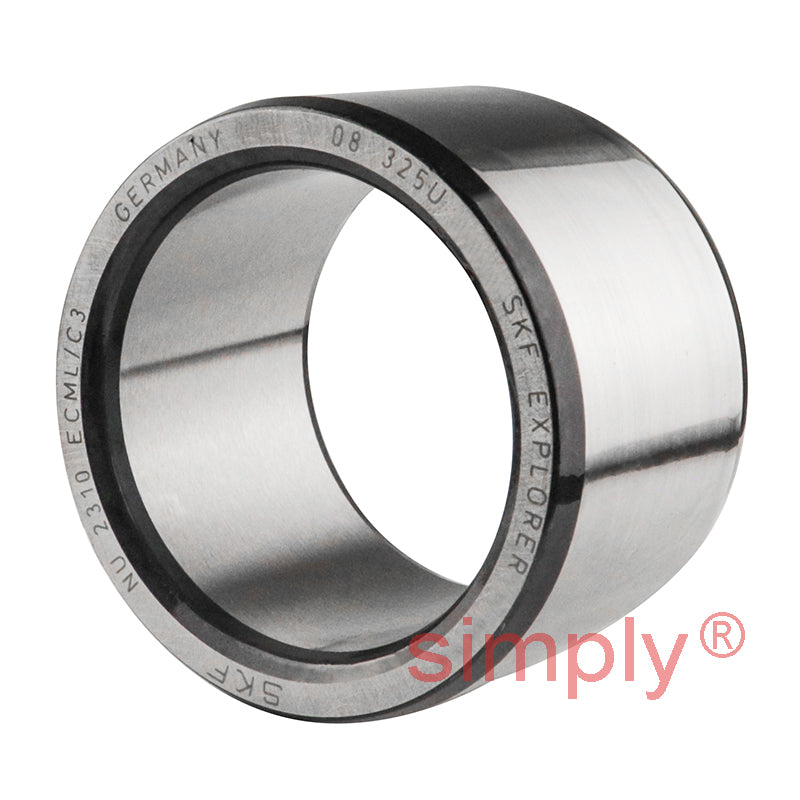

NU2310 Budget Single Row Cylindrical Roller Bearing 50x110x40mm

NU2310 Budget Single Row Cylindrical Roller Bearing 50x110x40mm
$109.63 ex VAT
$109.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $73.43
19+ $69.31
29+ $68.48
39+ $67.66
49+ $66.83
74+ $66.01
99+ $61.88
199+ $61.06
249+ $60.23
499+ $59.41
999+ $57.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
110mm
Width:
40mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 50mm
D 110mm
B 40mm
Dynamic load C 0.186 kN
Static load Co 186 kN
Fatigue load limit Pu 24.5 kN
Reference speed 6700 rpm
Limiting speed 8000 rpm
Weight 1.73 kg
Cage options ML
D1 92.1mm
F, E 65mm
r1r2 min 2mm
r3r4 min 2mm
s 3.4mm
da min 61mm
da max 63mm
db min 67mm
Da max 99mm
ra max 2mm
rb max 2mm
kr 0.25
