SKU: NU303ECP-SKF

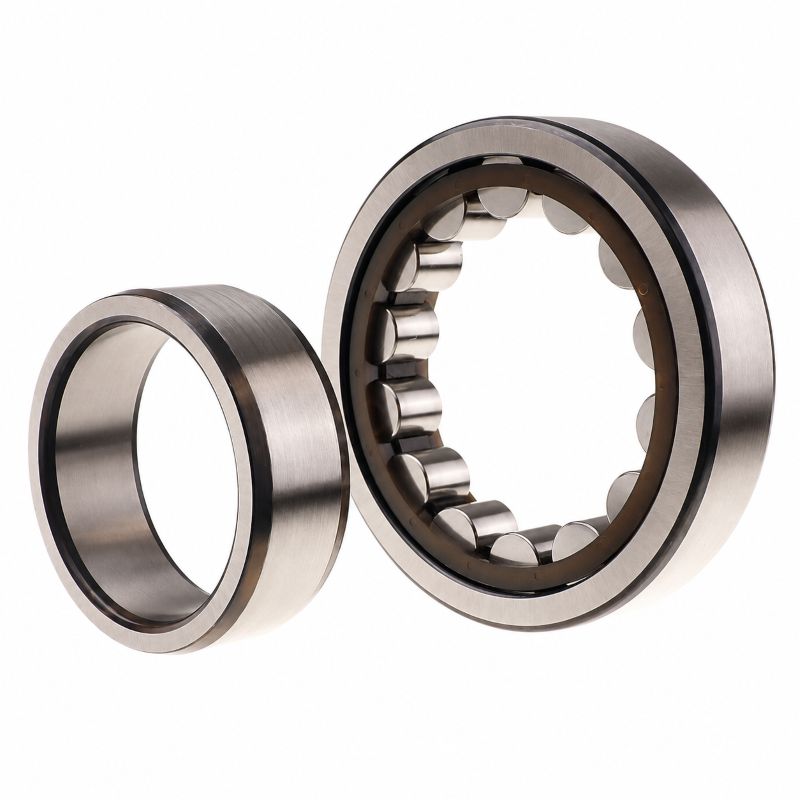

SKF NU303ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 17x47x14mm
SKF NU303ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 17x47x14mm
Regular price
$103.43
ex VAT
Regular price
Sale price
$103.43
ex VAT
In stock
Price Break
10+
$69.28
19+
$65.39
29+
$64.61
39+
$63.83
49+
$63.05
74+
$62.28
99+
$58.38
199+
$57.61
249+
$56.83
499+
$56.05
999+
$54.49
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 24.6 kN |
| Static load Co | 20.4 kN |
| Fatigue load limit Pu | 2.55 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.12 kg |
| D1 | 37mm |
| F,E | 24.2mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 1mm |
| da min | 21.2mm |
| da max | 23mm |
| db | 26mm |
| Da max | 41.4mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
