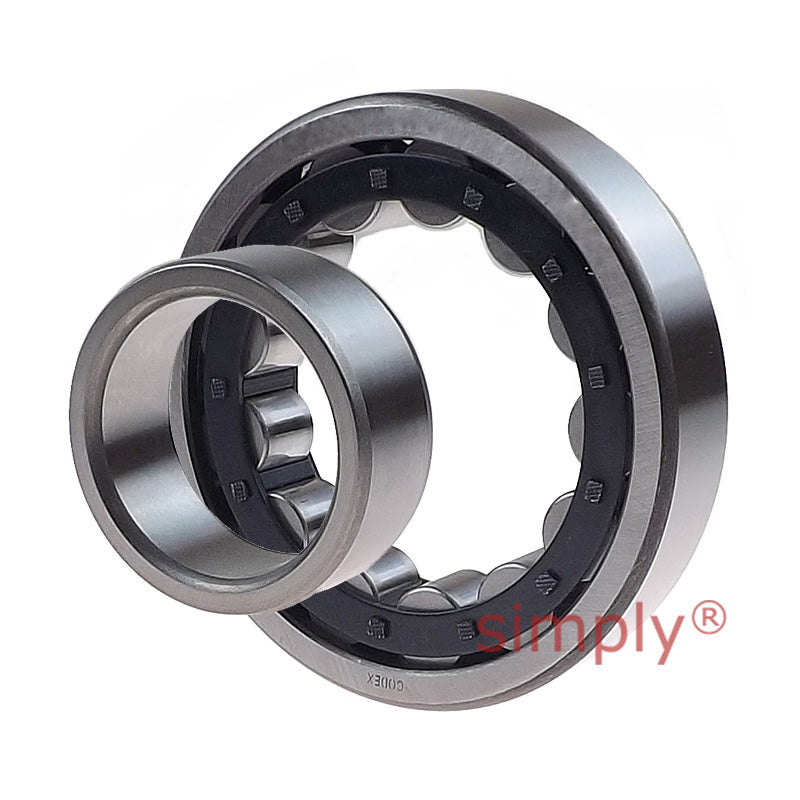

• Codex NU309 Single Row Cylindrical Roller Bearing 45x100x25mm
  • Codex
1 2

SKU: NU309-CDX

Codex NU309 Single Row Cylindrical Roller Bearing 45x100x25mm

Codex NU309 Single Row Cylindrical Roller Bearing 45x100x25mm
$57.05 ex VAT
$57.05 ex VAT
Sale Sold out

In stock

Price Break
10+ $38.22
19+ $36.07
29+ $35.64
39+ $35.21
49+ $34.78
74+ $34.35
99+ $32.21
199+ $31.78
249+ $31.35
499+ $30.92
999+ $30.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 45mm
D 100mm
B 25mm
Dynamic load C c112 kN
Static load Co 100 kN
Fatigue load limit Pu 12.9 kN
Reference speed 7500 rpm
Limiting speed 8500 rpm
Weight 0.9 kg
Cage options J.M.ML
d1 64.4mm
D1 83.8mm
F, E 58.5mm
r1r2 min 1.5mm
r3r4 min 1.5mm
s 1.7mm
da min 54mm
da max 56mm
db min 61mm
Da max 91mm
ra max 1.5mm
rb max 1.5mm
kr 0.15
Angle ring HJ309EC
Angle ring weight 0.11kg
B1 7mm
B2 11.5mm
