SKU: NU310-CDX

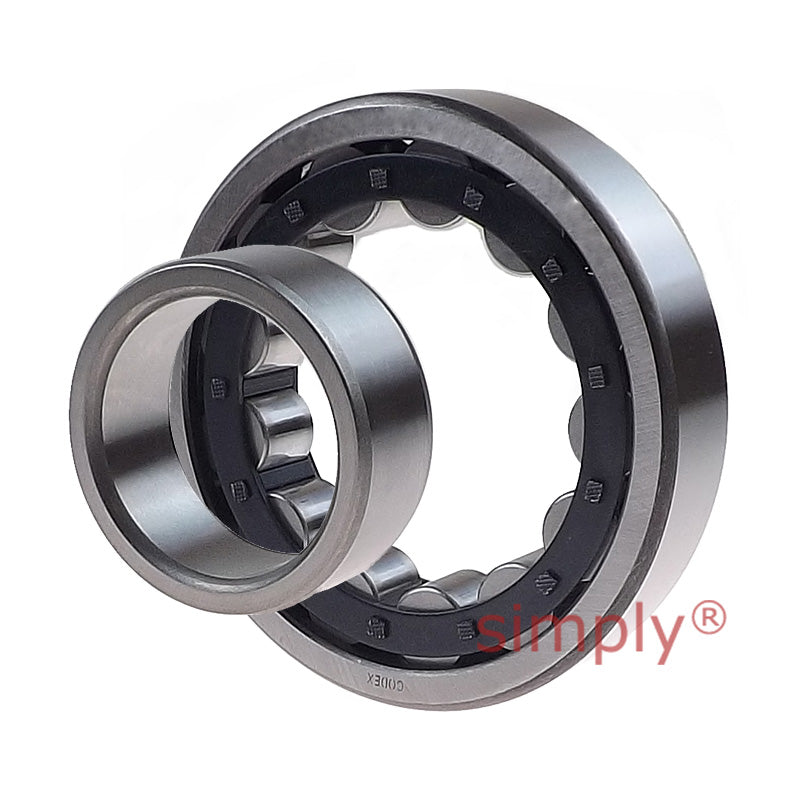

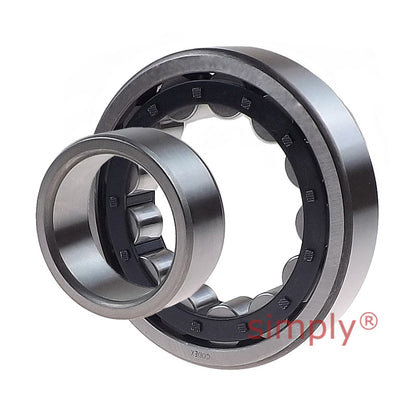

Codex NU310 Single Row Cylindrical Roller Bearing 50x110x27mm

Name: Codex NU310 Single Row Cylindrical Roller Bearing 50x110x27mm
Brand: Codex
SKU: NU310-CDX
Price: 70.61 USD
Availability: InStock

$70.61 ex VAT

Sale Sold out

In stock

Price Break

10+ $47.30

19+ $44.64

29+ $44.11

39+ $43.58

49+ $43.05

74+ $42.51

99+ $39.86

199+ $39.33

249+ $38.79

499+ $38.26

999+ $37.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 50mm
Outside Diameter:: 110mm
Width:: 27mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	50mm
D	110mm
B	27mm
Dynamic load C	127 kN
Static load Co	112 kN
Fatigue load limit Pu	15 kN
Reference speed	6700 rpm
Limiting speed	8000 rpm
Weight	1.14 kg
Cage options	J.M.ML
d1	71.2mm
D1	92.1mm
F, E	65mm
r1r2 min	2mm
r3r4 min	2mm
s	1.9mm
da min	61mm
da max	63mm
db min	67mm
Da max	99mm
ra max	2mm
rb max	2mm
kr	0.15
Angle ring	HJ310EC
Angle ring weight	0.14kg
B1	8mm
B2	13mm
