SKU: NU313-CDX

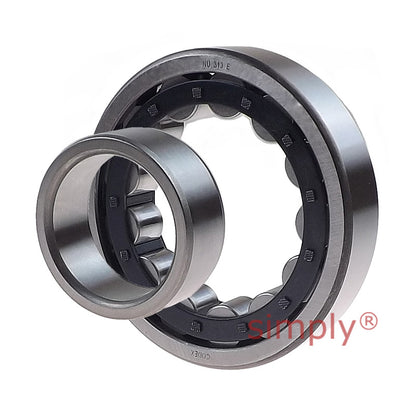

Codex NU313 Single Row Cylindrical Roller Bearing 65x140x33mm
- Regular price
- $134.35 ex VAT
- Sale price
- $134.35
- Regular price
-
In stock
Quantity Price Breaks
10
$119.57
19
$112.85
29
$111.51
39
$110.17
49
$108.82
74
$107.48
99
$100.76
199
$99.42
249
$98.08
499
$96.73
999
$94.05
SKU:
NU313-CDX
Codex NU313 Single Row Cylindrical Roller Bearing 65x140x33mm
- Regular price
- $134.35 ex VAT
- Sale price
- $134.35
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
Technical
| d | = | 65mm |
| D | = | 140mm |
| B | = | 33mm |
| Dynamic load C | = | 212 kN |
| Static load Co | = | 196 kN |
| Fatigue load limit Pu | = | 25.5 kN |
| Reference speed | = | 5300 rpm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 2.2 kg |
| Cage options | = | J.M.ML |
| d1 | = | 90.5mm |
| D1 | = | 119mm |
| F, E | = | 82.5mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 2.2mm |
| da min | = | 77mm |
| da max | = | 80mm |
| db min | = | 85mm |
| Da max | = | 128mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
| Angle ring | = | HJ313EC |
| Angle ring weight | = | 0.27kg |
| B1 | = | 10mm |
| B2 | = | 15.5mm |
