SKU: NU314-CDX

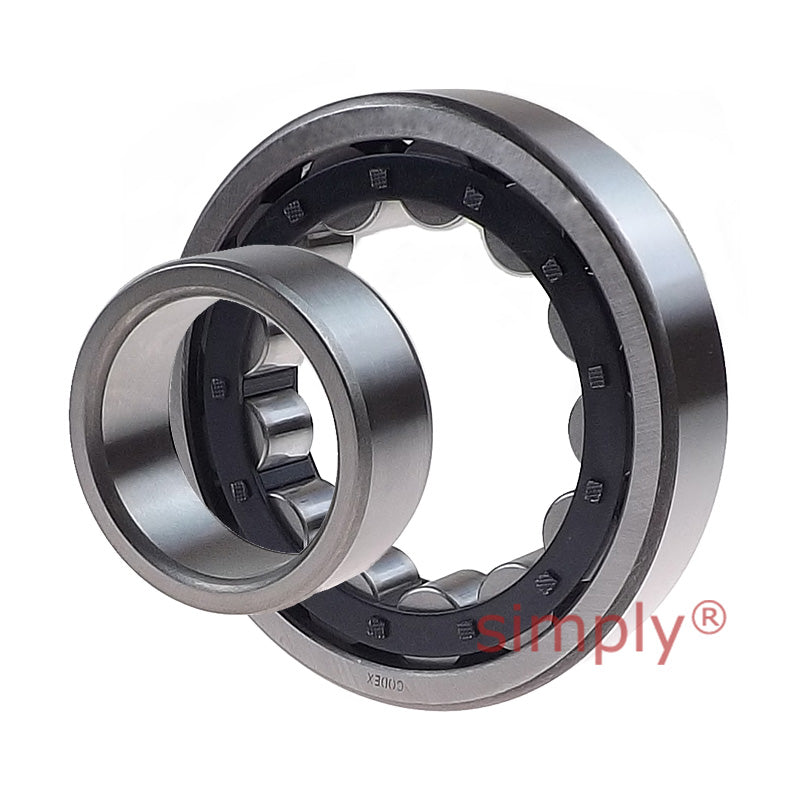

Codex NU314 Single Row Cylindrical Roller Bearing 70x150x35mm

Name: Codex NU314 Single Row Cylindrical Roller Bearing 70x150x35mm
Brand: Codex
SKU: NU314-CDX
Price: 160.05 USD
Availability: InStock

$160.05 ex VAT

Sale Sold out

In stock

Price Break

10+ $107.21

19+ $101.18

29+ $99.98

39+ $98.78

49+ $97.57

74+ $96.37

99+ $90.34

199+ $89.14

249+ $87.93

499+ $86.73

999+ $84.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 70mm
Outside Diameter:: 150mm
Width:: 35mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	70mm
D	150mm
B	35mm
Dynamic load C	236 kN
Static load Co	228 kN
Fatigue load limit Pu	29 kN
Reference speed	4800 rpm
Limiting speed	5600 rpm
Weight	2.7 kg
Cage options	J.M.ML
d1	97.3mm
D1	127mm
F, E	89mm
r1r2 min	2.1mm
r3r4 min	2.1mm
s	1.8mm
da min	82mm
da max	86mm
db min	91mm
Da max	138mm
ra max	2mm
rb max	2mm
kr	0.15
Angle ring	HJ314EC
Angle ring weight	0.32kg
B1	10mm
B2	15.5mm
