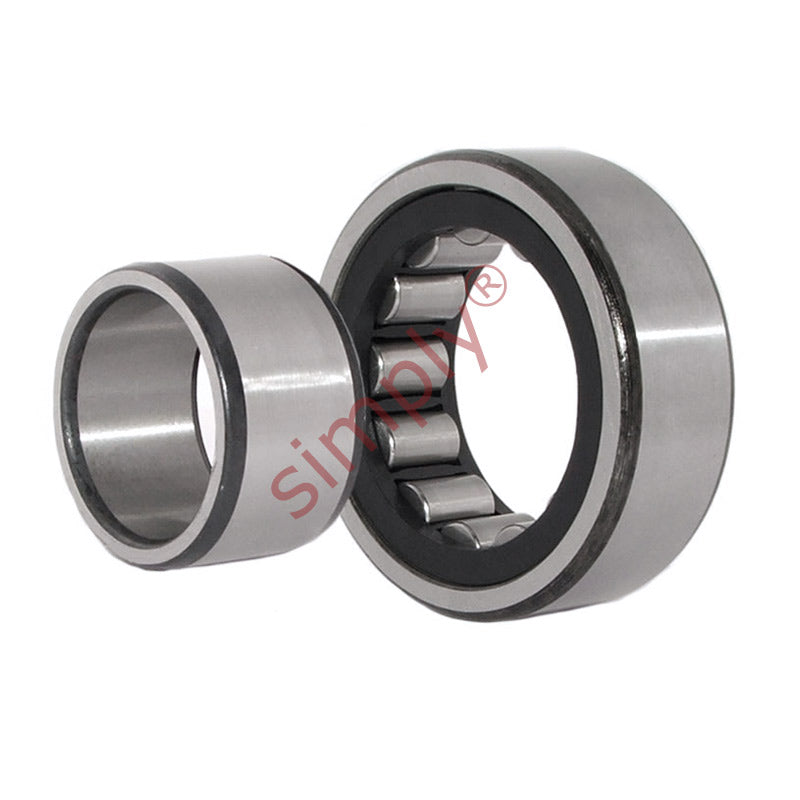

• SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
1 1

SKU: NU315ECP/VL0241-SKF

SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm

SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
$1,348.83 ex VAT
$1,348.83 ex VAT
Sale Sold out

In stock

Price Break
10+ $903.48
19+ $852.72
29+ $842.57
39+ $832.42
49+ $822.27
74+ $812.12
99+ $761.36
199+ $751.21
249+ $741.06
499+ $730.91
999+ $710.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated
Brand / Quality:
SKF - High Quality
Inside Diameter:
75mm
Outside Diameter:
160mm
Width:
37mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 75mm
D 160mm
B 37mm
Dynamic load C 280 kN
Static load Co 265 kN
Fatigue load limit Pu 33.5 kN
Reference speed 4500 rpm
Limiting speed 5300 rpm
Weight 3.3 kg
D1 136mm
F 95mm
r1r2 min 2.1mm
r1r4 min 2.1mm
s 1.8mm
da min 87mm
da max 92mm
db min 97mm
Da min 141mm
Da max 148mm
ra max 2mm
rb max 2mm
kr 0.15
